Large Woven Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. SJD-004 – Architectural Woven Wire MeshSJD-4
Transparency Model Specification Sheet

The SJD-4 promotes the concept of “Variable Pitch” in the Banker Wire manufacturing process. With a given crimp “Pitch” (wire pocket), you the designer can create the frequency of the weave. Your frequency called out, controls the visual pattern along with the screen density so that a perfect mesh is custom created to suit appearance as well as function. This concept can be applied to many other weave styles.

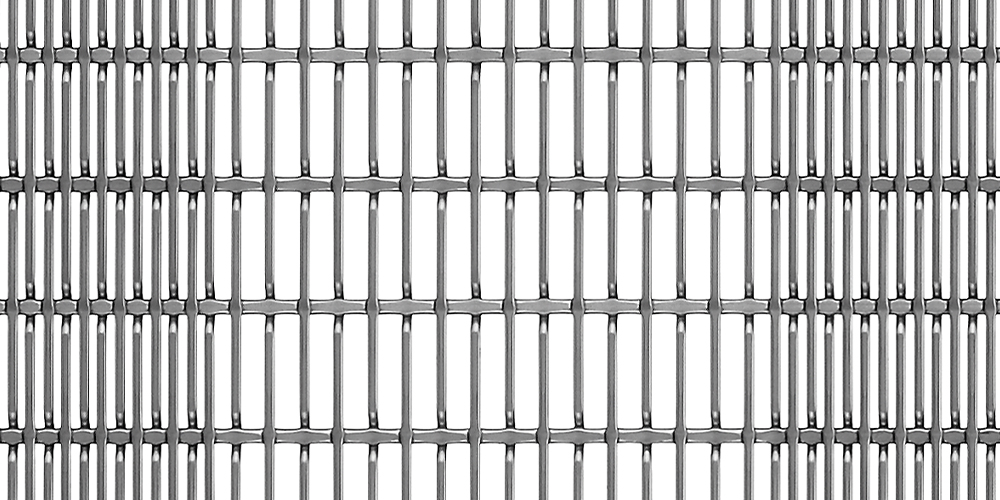

As shown, the SJD-4 variable pitch between the warp wires creates a gradient effect, transitioning from a tightly-spaced, nearly opaque weave to an open, transparent fabric. The larger scale is suitable for exteriors and facades as well as interiors.

Pattern Details

Percent Open:54.50%

Overall Thickness:0.320

Crimp Style:SJD

Aspect Ratio:24.00:1

Opening Limitation:0.130

Weight:1.728 lbs./sq. ft.



Available Raw Materials: StainlessSteel_Icon2 PlainSteel_Icon2 WeatheringSteel_Icon2 PreGalv_Icon2 Galfan_Icon2 Bronze_Icon2 Brass_Icon2 Copper_Icon2 Click here for more information on Raw Materials

Available Secondary Finishes

PVDPlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes
