M14Z-5



M14Z-5

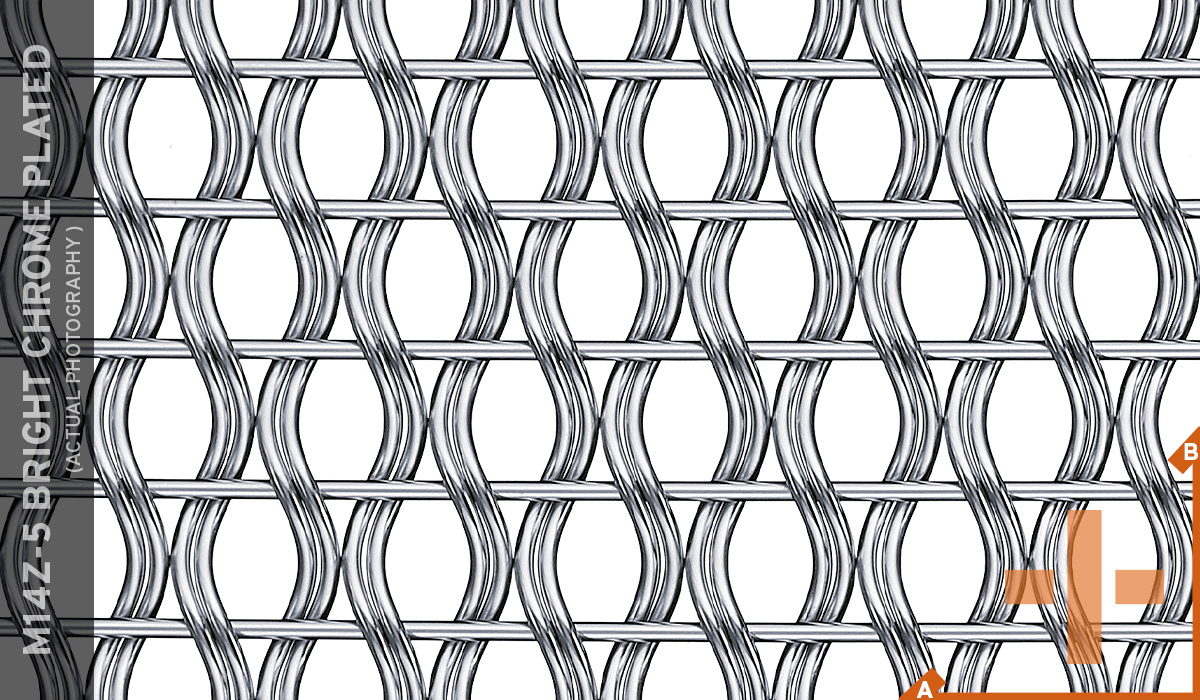

Mid-Fill Woven Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. M14Z-005M14Z-5
Specification Sheet

The M14Z-5 is created with a dutch style warp wire and a pair of helical crimped fill wires. The simple wire shapes combine to create a truly unique wire mesh pattern that both excites and soothes the senses. This mid-fill woven wire mesh pattern can be woven in a variety of alloys including brass, bronze, copper, plain steel, and weathering steel.

Pattern Details

Percent Open:39.7%

Overall Thickness:0.315

Crimp Style:PD4HZ

Aspect Ratio:1.22:1

Opening Limitation:0.400

Weight:2.28 lbs./sq. ft.



Available Raw Materials: Click here for more information on Raw Materials

Available Secondary Finishes

PVDPlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes

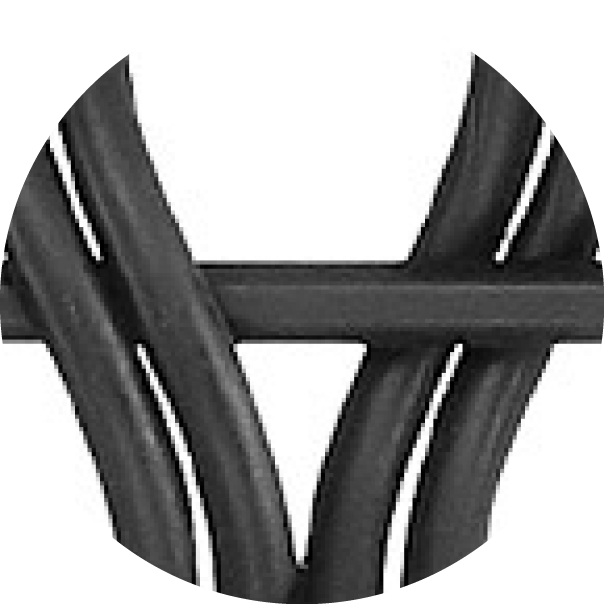

M14Z-5 Photos
