Mid-Fill Woven Wire Mesh Pattern

Transparency Model Specification Sheet Contact Us

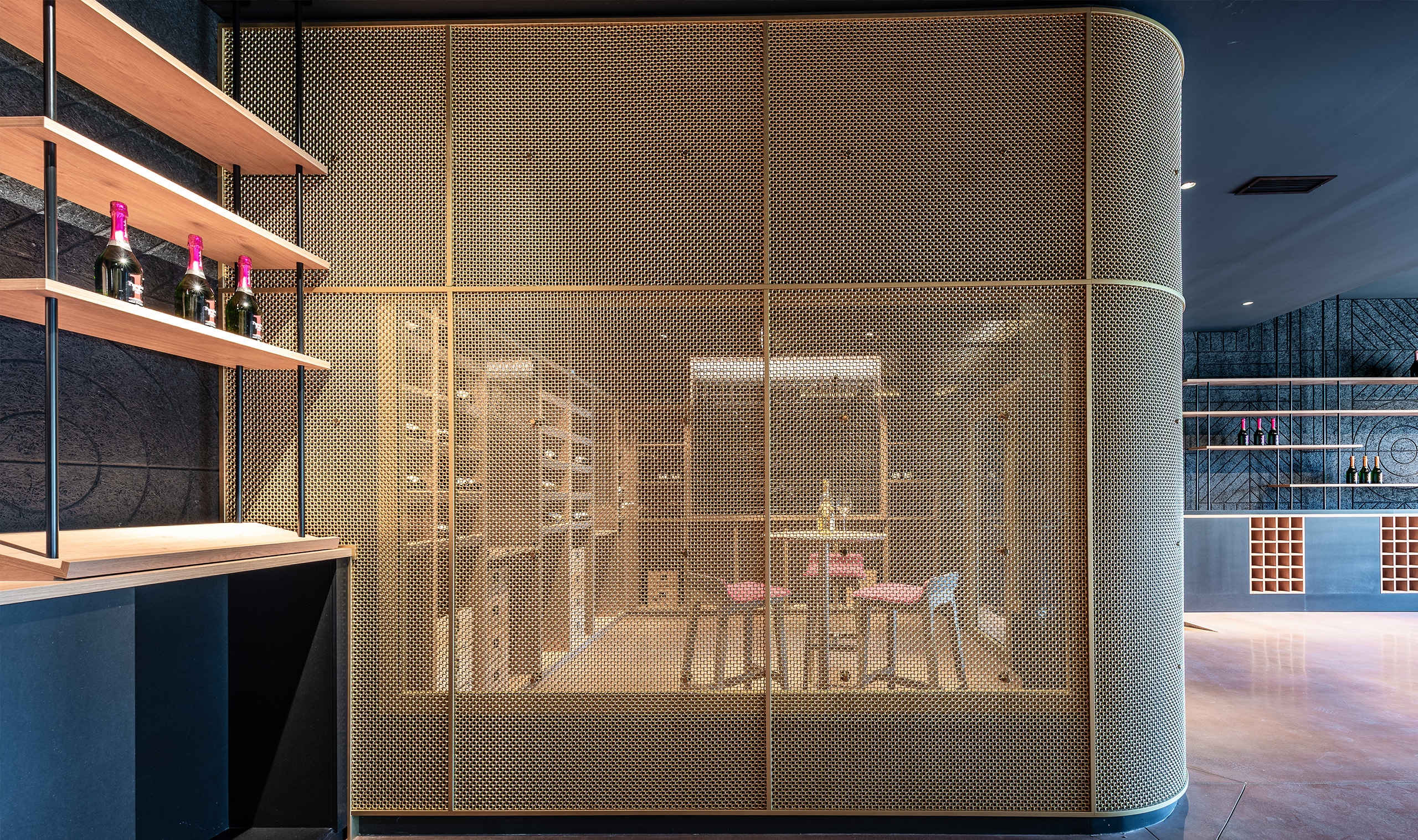

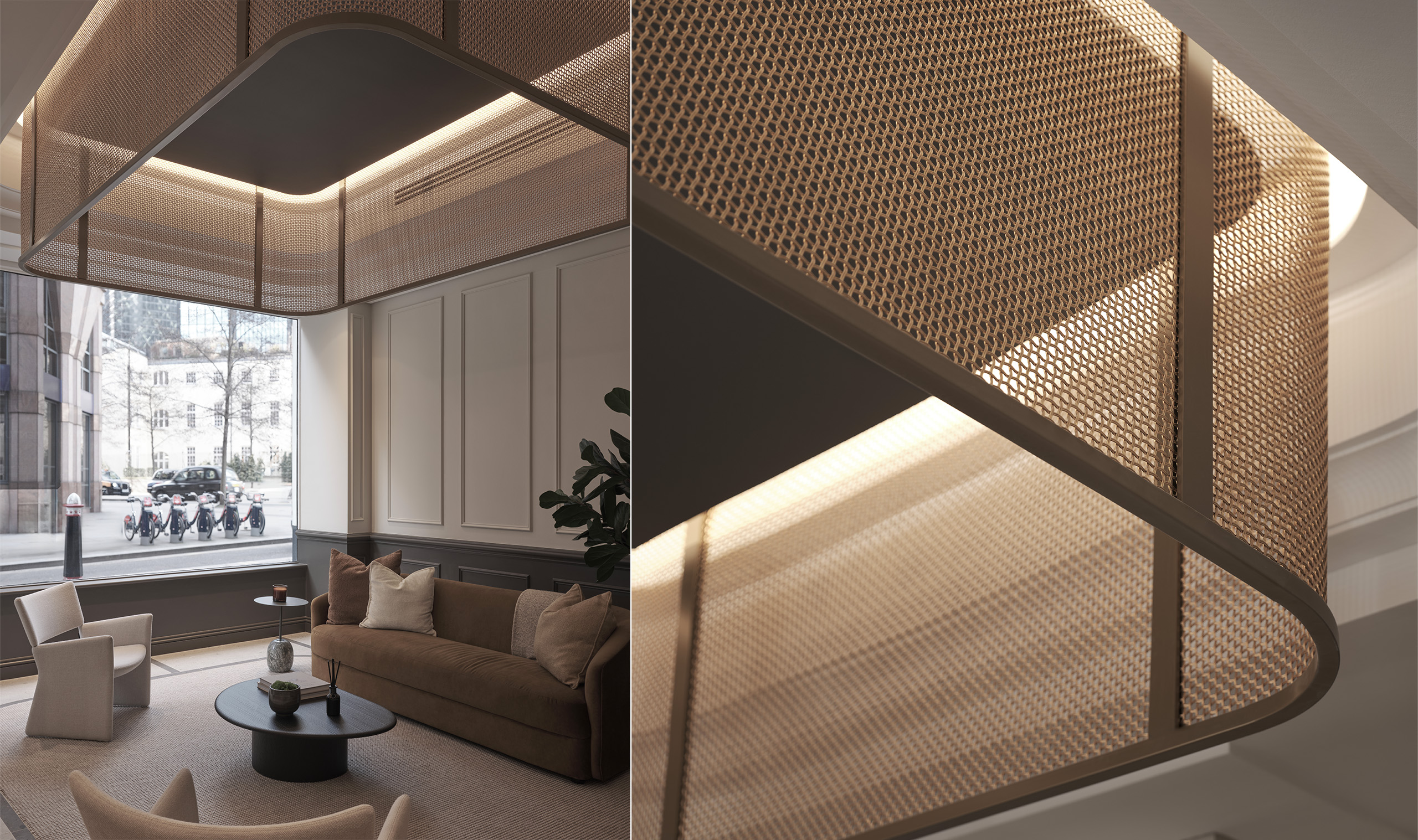

Banker Wire M22-83 architectural woven wire mesh pattern uses a pair of nested helical crimped wires to define the circular mesh shape. The unique reflective surfaces of the M22-83 decorative mesh is doubled in perfect unison. The double woven wire pattern adds strength and is a great option for railings, screen walls, space dividers, and signage, plus many other interior or exterior design applications.

Pattern Details

Percent Open:41.4%

Overall Thickness:0.160

Crimp Style: 2H2H

Aspect Ratio:1.00:1

Opening Limitation:0.430

Weight:1.72 lbs./sq. ft.

Available Raw Materials: Click here for more information on Raw Materials


Available Secondary Finishes

PlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes
photo-icon Stainless Steel (A) / Brass (B) photo-icon Stainless Steel (A) / Bronze (B) photo-icon Stainless Steel (A) / Copper (B) photo-iconStainless Steel photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconBrass photo-iconGeneral photo-iconBronze photo-iconGeneral photo-iconCopper photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconPlated - Antique Brass photo-iconGeneral photo-iconPlated - Antique Copper photo-iconGeneral photo-iconPlated - Antique Nickel photo-iconGeneral photo-iconPlated - Black Copper photo-iconGeneral photo-iconPlated - Bright Copper photo-iconGeneral photo-iconPlated - Bright Brass photo-iconGeneral photo-iconPlated - Dark Oxide photo-iconGeneral photo-iconPlated - Satin Brass photo-iconGeneral photo-iconPlated - Bright Chrome photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral
stainless testing brass testing bronze testing copper testing plated-copper testing plated-brass testing plated-black-copper testing plated-bright-brass testing plated-satin-brass testing plated-dark-oxide testing plated-bright-chrome testing plated-nickle testing plated-bright-copper testing ss-brass testing ss-bronze testing ss-copper testing stainless plain-steel weathering-steel pre-galv galfan brass bronze copper aluminum ss-brass ss-bronze ss-copper brass-ss ss-brass-ss ss-brass-ss-brass bronze-ss ss-bronze-ss ss-bronze-ss-bronze copper-ss ss-copper-ss ss-copper-ss-copper ss-ss-brass ss-ss-bronze ss-ss-copper ss-brass-brass ss-bronze-bronze ss-copper-copper brass-ss-ss bronze-ss-ss copper-ss-ss ss-b-brass-brass ss-b-bronze-bronze ss-b-copper-copper pvd-champagne-gold pvd-gunmetal pvd-multi pvd-rose-gold pvd-royal-gold pvd-chocolate-gold plated-brass plated-copper plated-nickle plated-black-copper plated-bright-copper plated-bright-brass plated-dark-oxide plated-satin-brass plated-bright-chrome powder-black powder-black-oil powder-black-raven powder-multi us10a us10b

Stainless Steel


a small ruler that is set in inches
All Finishes Raw Materials Secondary Finishes

❮
❯


Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.



M22-83

banker wire logo for our print page

print ready image for M22-83 img b height marker img a height marker

Pattern Details

Percent Open:41.4%

Aspect Ratio:1.00:1

Weight:1.72 lbs./sq. ft.

Overall Thickness:0.160 in.

Crimp Style:2H2H

Opening Limitation:0.430 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A
Max. B
Raw Material Configuration

120
60


Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
