LHZ-1

LHZ-1

Large Woven Wire Mesh Pattern

Transparency Model Specification Sheet Contact Us

Mixing old and new creates a wonderful architectural wire mesh pattern.  Lock crimp warp wires provide the stability while the helical fill wires meander in and out and side to side.

Pattern Details

Percent Open:74.5%

Overall Thickness:0.210

Crimp Style: LCHXZ

Aspect Ratio:1.60:1

Opening Limitation:0.520

Weight:0.97 lbs./sq. ft.

Available Raw Materials: Click here for more information on Raw Materials


Available Secondary Finishes

PlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes

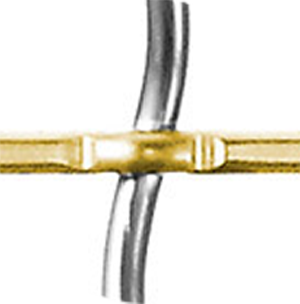

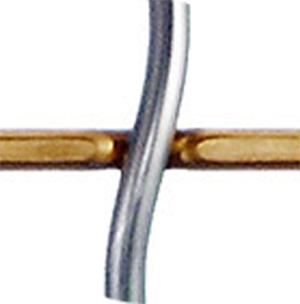

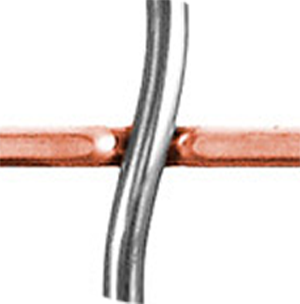

photo-icon Brass (A) / Stainless Steel (B) photo-icon Bronze (A) / Stainless Steel (B) photo-icon Copper (A) / Stainless Steel (B) photo-iconStainless Steel photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconBrass photo-iconGeneral photo-iconBronze photo-iconGeneral photo-iconCopper photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral
brass testing bronze testing copper testing stainless testing brass-ss testing bronze-ss testing copper-ss testing stainless plain-steel weathering-steel pre-galv galfan brass bronze copper aluminum ss-brass ss-bronze ss-copper brass-ss ss-brass-ss ss-brass-ss-brass bronze-ss ss-bronze-ss ss-bronze-ss-bronze copper-ss ss-copper-ss ss-copper-ss-copper ss-ss-brass ss-ss-bronze ss-ss-copper ss-brass-brass ss-bronze-bronze ss-copper-copper brass-ss-ss bronze-ss-ss copper-ss-ss ss-b-brass-brass ss-b-bronze-bronze ss-b-copper-copper pvd-champagne-gold pvd-gunmetal pvd-multi pvd-rose-gold pvd-royal-gold pvd-chocolate-gold plated-brass plated-copper plated-nickle plated-black-copper plated-bright-copper plated-bright-brass plated-dark-oxide plated-satin-brass plated-bright-chrome powder-black powder-black-oil powder-black-raven powder-multi us10a us10b

Stainless Steel


a small ruler that is set in inches
All Finishes Raw Materials Secondary Finishes

❮
❯


Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.



LHZ-1

banker wire logo for our print page

print ready image for LHZ-1 img b height marker img a height marker

Shown in bronze and stainless steel.

Pattern Details

Percent Open:74.5%

Aspect Ratio:1.60:1

Weight:0.97 lbs./sq. ft.

Overall Thickness:0.210 in.

Crimp Style:LCHXZ

Opening Limitation:0.520 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A
Max. B
Raw Material Configuration

168
72


Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
