SJD-5

Mid-Fill Woven Wire Mesh Pattern

Transparency Model Specification Sheet Contact Us

The SJD-5 wire mesh pattern uses four different crimp styles to make up this interesting mix of shine, satin, smooth, and rough. The wild differences between crimps blend perfectly and controlled when woven together over a large area.

Pattern Details

Percent Open:61.2%

Overall Thickness:0.160

Crimp Style: SJD05

Aspect Ratio: 1.47:1

Opening Limitation: 0.440

Weight: 1.09 lbs./sq. ft.

Available Raw Materials:

Click here for more information on Raw Materials Copper, Brass and Bronze are Living Finishes. Learn more Available Secondary Finishes:

US10A

Click here for more information on Secondary Finishes

Configured Stainless Steel (A) / Brass (B) Finish Overview

Configured Stainless Steel (A) / Bronze (B) Finish Overview

Configured Stainless Steel (A) / Copper (B) Finish Overview

Configured Stainless Steel (A)(B) / Copper (A)

Configured Stainless Steel (A)(B) / Brass (A)

Stainless Steel

All Finishes Raw Materials Secondary Finishes

❮

❯

Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.

A small hamburger icon, navigation for interior page vertical movement.

Top of Page Pattern Details

Custom wire mesh and additional specifications available.

Inquire now or call us at 262-363-6120

SJD-5

Pattern Details

Percent Open:61.2%

Aspect Ratio:1.47:1

Weight:1.09 lbs./sq. ft.

Overall Thickness:0.160

Crimp Style:SJD05

Opening Limitation:0.440 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections

Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A

Max. B

Raw Material Configuration

168

Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.

SJD-5

SJD-5

Mid-Fill Woven Wire Mesh Pattern

Pattern Details

Projects Related To SJD-5

Press Related to SJD-5

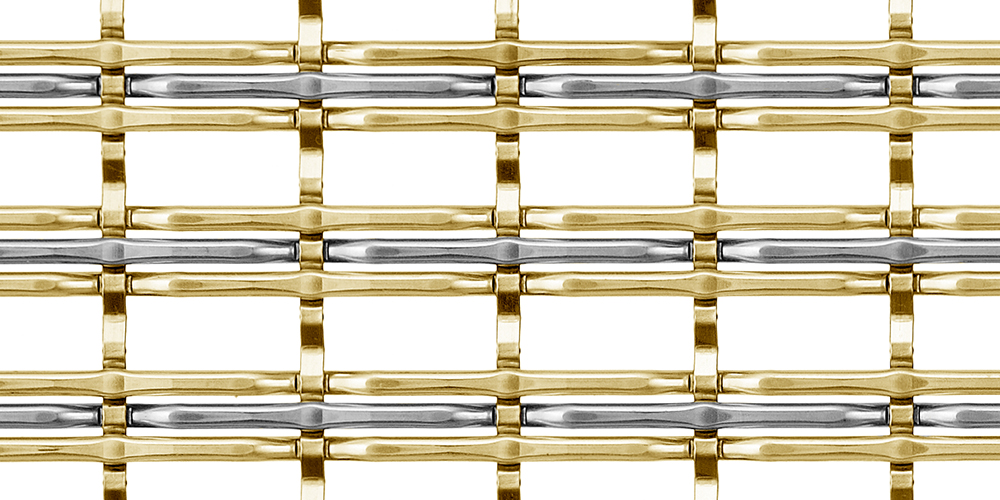

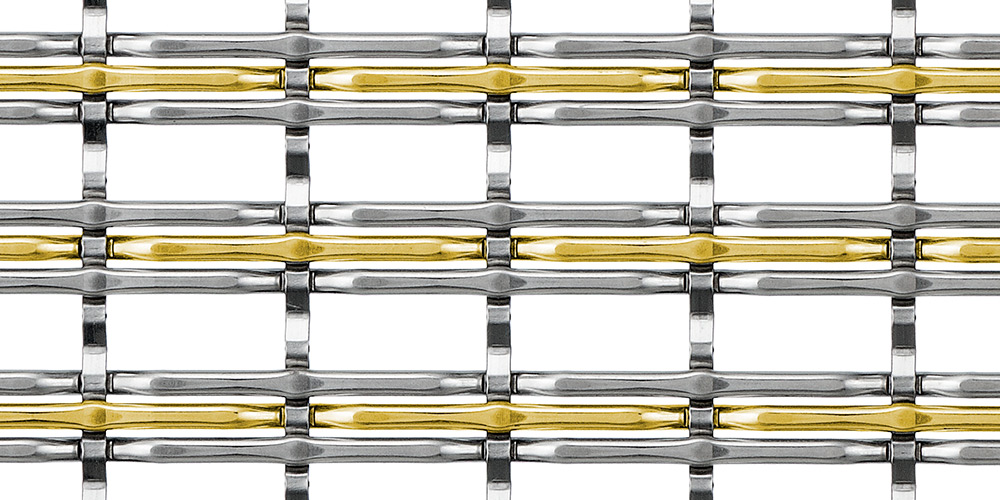

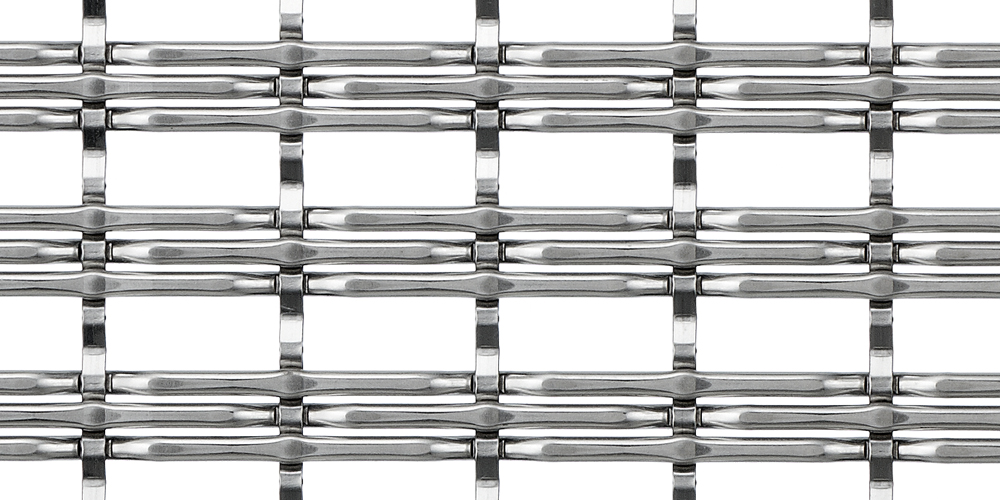

Products Similar to SJD-5
