Mid-Fill Woven Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. M13Z-187 – Architectural Woven Wire MeshM13Z-187
Transparency Model Specification Sheet

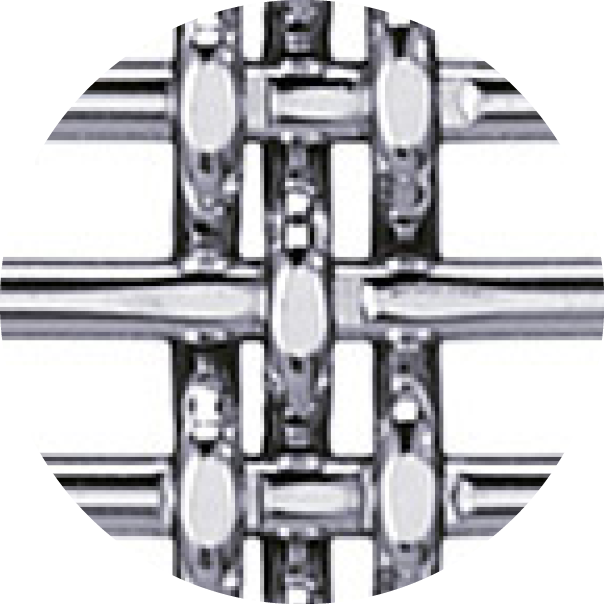

The M13Z-187 is a heavy mid-range rigid cable weave. Consistently spaced straight wires are intersected by 3 unique cross wires that are heavily tooled.

Pattern Details

Percent Open:42.3%

Overall Thickness:0.290

Crimp Style: PS3PZ

Aspect Ratio:8.33:1

Opening Limitation:0.130

Weight:2.01 lbs./sq. ft.


Available Raw Materials: Click here for more information on Raw Materials

Available Secondary Finishes
PlatedPowder CoatUS10A
Click here for more information on Secondary Finishes
