DRIFT

DRIFT

Flexible Fine Spiral Mesh Pattern

Specification Sheet Contact Us
A dense flexible spiral mesh pattern, Drift is visually and physically substantial.  Flat wire spirals interlock to create a low 23% open area screen.  Available in T316 Stainless Steel, Copper, and Aluminum.  Multiple flexible mesh mounting systems are available to help bring your vision to life.  Or, contact us and we can discuss the options that are right for your project.

Pattern Details

Percent Open:24.0%

Overall Thickness:.250

Crimp Style: BTPLZ

Aspect Ratio: 2.62:1

Opening Limitation: .128

Weight: 1.70 lbs./sq. ft.

Available Raw Materials:
stainless materialcopper materialaluminum material

Click here for more information on Raw Materials Copper, Brass and Bronze are Living Finishes. Learn moreliving finish Available Secondary Finishes:

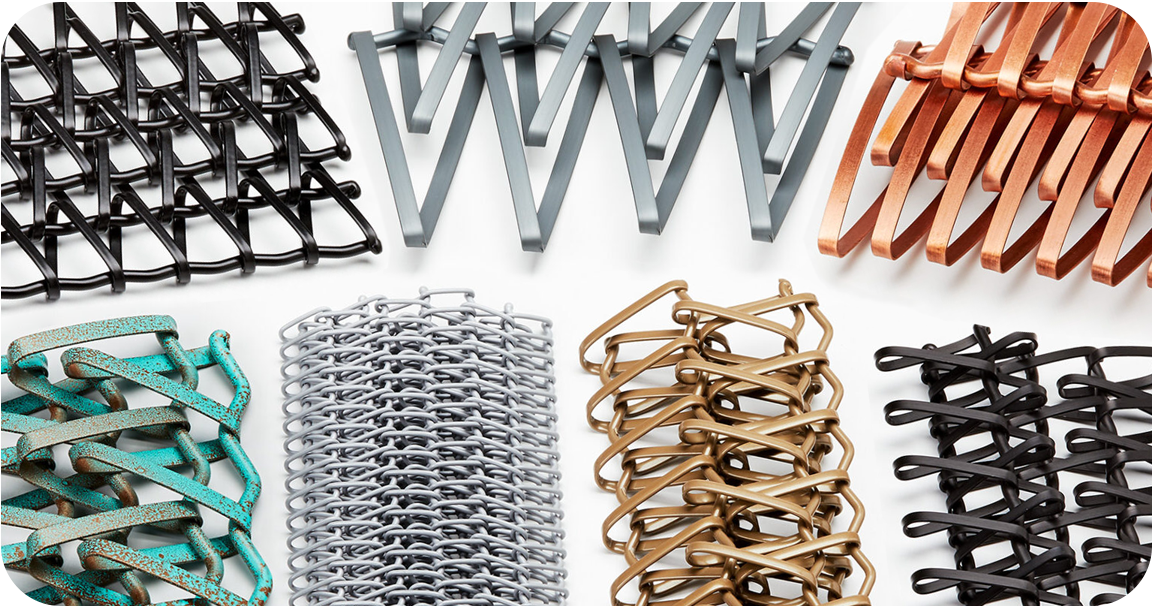

Powder CoatAnodized

Click here for more information on Secondary Finishes
photo-icon photo-icon photo-icon photo-icon photo-icon photo-icon

Stainless Steel Finish Overview Copper Finish Overview Powder Coat - Various Stainless Steel Copper
Ruler a small ruler that is set in inches


Stainless Steel


All Finishes Raw Materials Secondary Finishes

❮
products-materials-icons products-materials-icons secondary-finishes
❯


Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.



A small hamburger icon, navigation for interior page vertical movement. Top of Page Pattern Details Related Projects Related Press Related Products
Chat Icon close icon contact us icon

How can we help?

General Inquiry Quote Request Sample Request

Give us a call!

+1 262-363-6120

We use cookies to improve your experience on our website. By closing this banner or interacting with our site, you acknowledge and agree to this.

DRIFT

banker wire logo for our print page

print ready image for DRIFT img b height marker img a height marker

Pattern Details

Percent Open:24.0%

Aspect Ratio:2.62:1

Weight:1.70 lbs./sq. ft.

Overall Thickness:.250

Crimp Style:BTPLZ

Opening Limitation:.128 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A
Max. B
Raw Material Configuration

1200
216
printable material iconprintable material iconprintable material icon


Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
