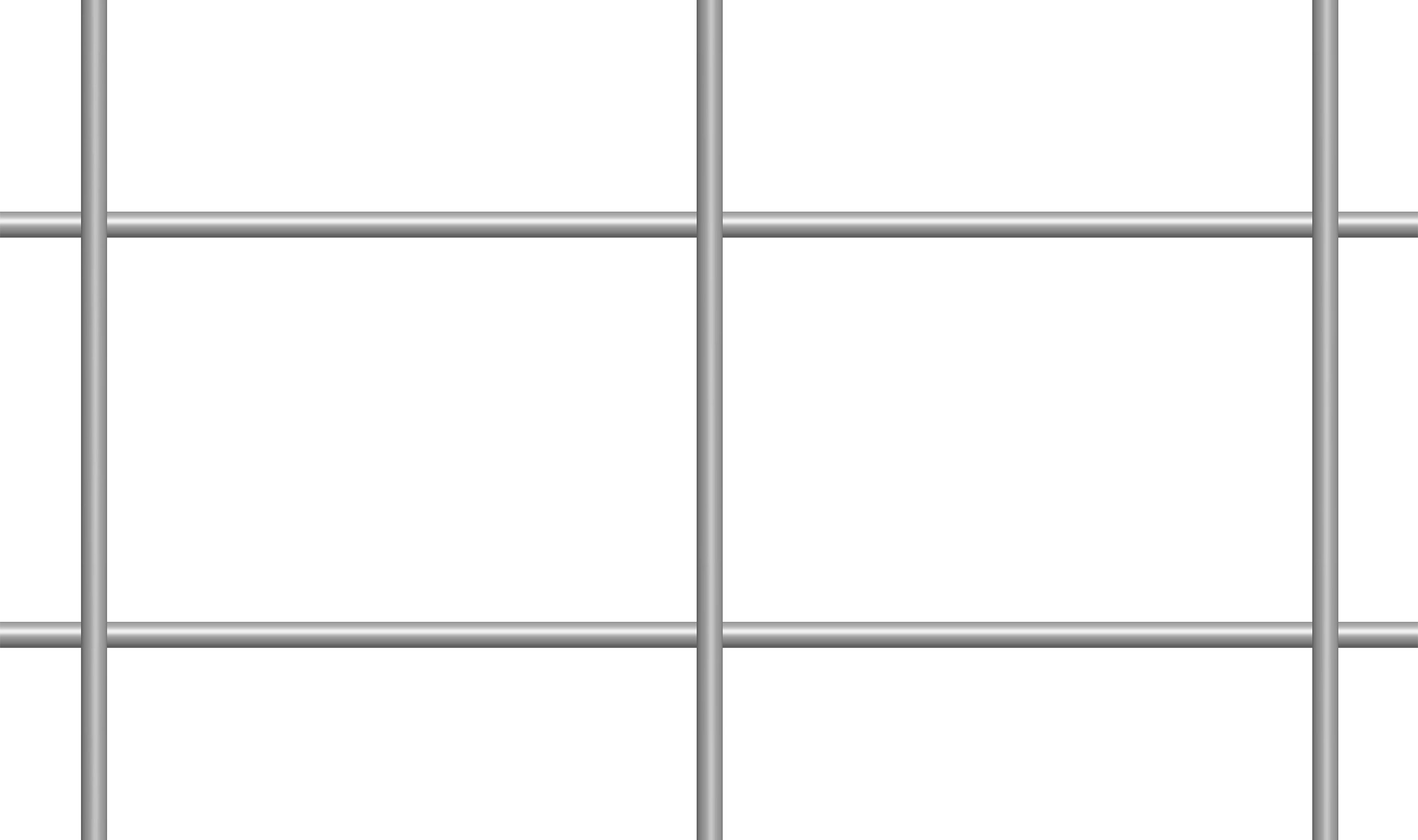

WDZ-152
Welded Wire Mesh Pattern
The Banker Wire WDZ-152 is a 4" X 6" MESH .250 WELDED wire mesh specification. This rectangular mesh can be welded in a variety of alloys including: Stainless Steel, Plain Steel, Weathering Steel, Pre-Galvanized Steel.
Pattern Details
Percent Open:89.8%
Overall Thickness:0.500
Crimp Style: WDWDZ
Aspect Ratio: 1.50:1
Opening Limitation: 3.750
Weight: 0.88 lbs./sq. ft.


WDZ-152




4" X 6" MESH .250 WELDED
Pattern Details
Percent Open:89.8%
Aspect Ratio:1.50:1
Weight:0.88 lbs./sq. ft.
Overall Thickness:0.500
Crimp Style:WDWDZ
Opening Limitation:3.750 in.
What are your dimensions?
We manufacture every job to size. List the dimensions and any addition details of your job.
"Maximum" Dimensions of available raw material configurations




*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
