WDZ-004

Welded Wire Mesh Pattern

Specification Sheet Contact Us

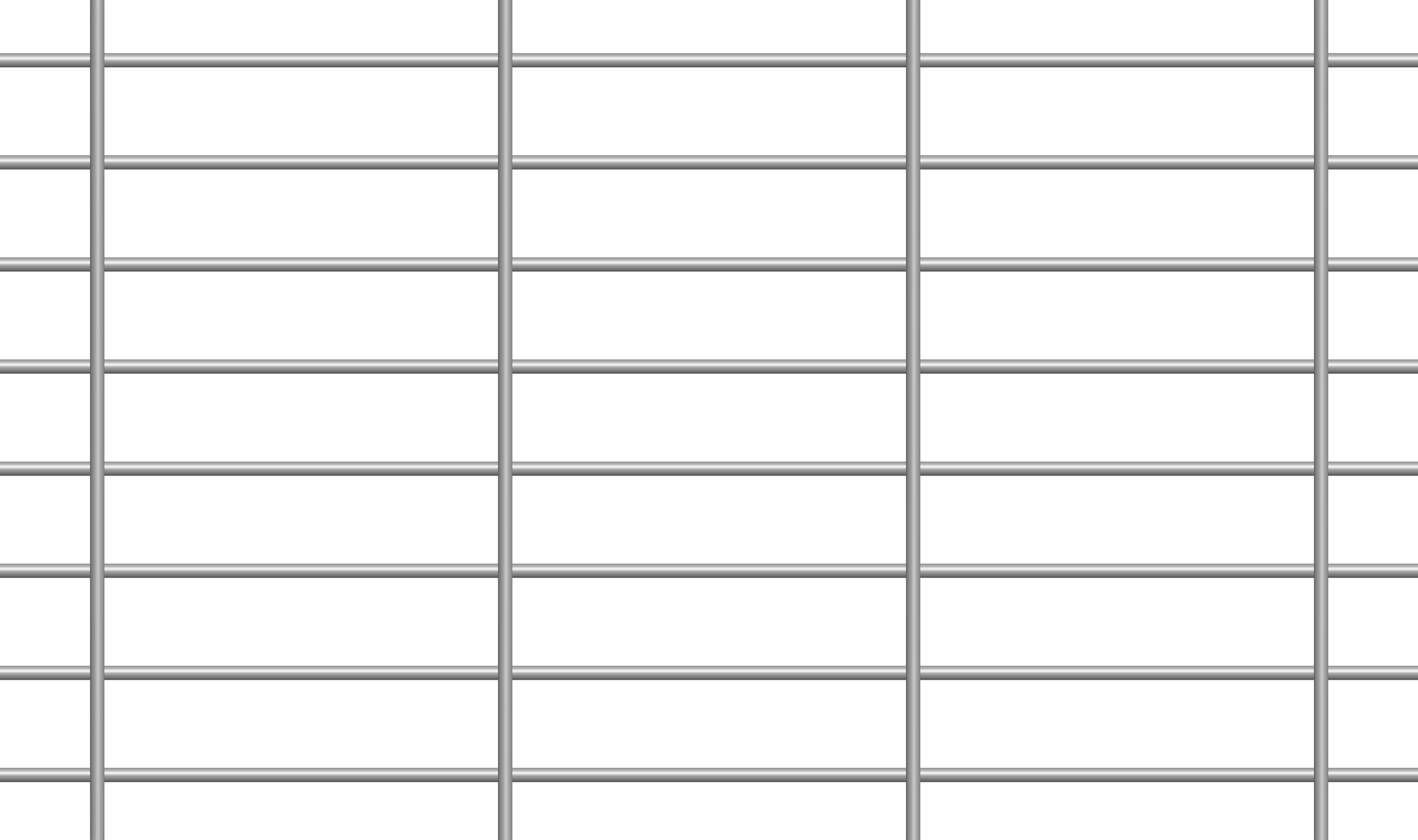

The Banker Wire WDZ-004 is a 1" X 4" MESH .135 WELDED wire mesh specification. This rectangular mesh can be welded in a variety of alloys including: Stainless Steel, Plain Steel, Weathering Steel, Pre-Galvanized Steel.

Pattern Details

Percent Open:83.6%

Overall Thickness:0.270

Crimp Style: WDWDZ

Aspect Ratio: 4.00:1

Opening Limitation: 0.870

Weight: 0.73 lbs./sq. ft.

Available Raw Materials:

Click here for more information on Raw Materials Available Secondary Finishes:

Plated Powder Coat

Click here for more information on Secondary Finishes

What can Banker Wire welded wire mesh do for you?Learn More

Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. WD-203 – Welded Wire MeshWD-203

A small hamburger icon, navigation for interior page vertical movement.

Top of Page Pattern Details

Custom wire mesh and additional specifications available.

Inquire now or call us at 262-363-6120

WDZ-004

1" X 4" MESH .135 WELDED

Pattern Details

Percent Open:83.6%

Aspect Ratio:4.00:1

Weight:0.73 lbs./sq. ft.

Overall Thickness:0.270

Crimp Style:WDWDZ

Opening Limitation:0.870 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections

Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A

Max. B

Raw Material Configuration

168

Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
