Welded Wire Mesh Pattern

Specification Sheet Contact Us

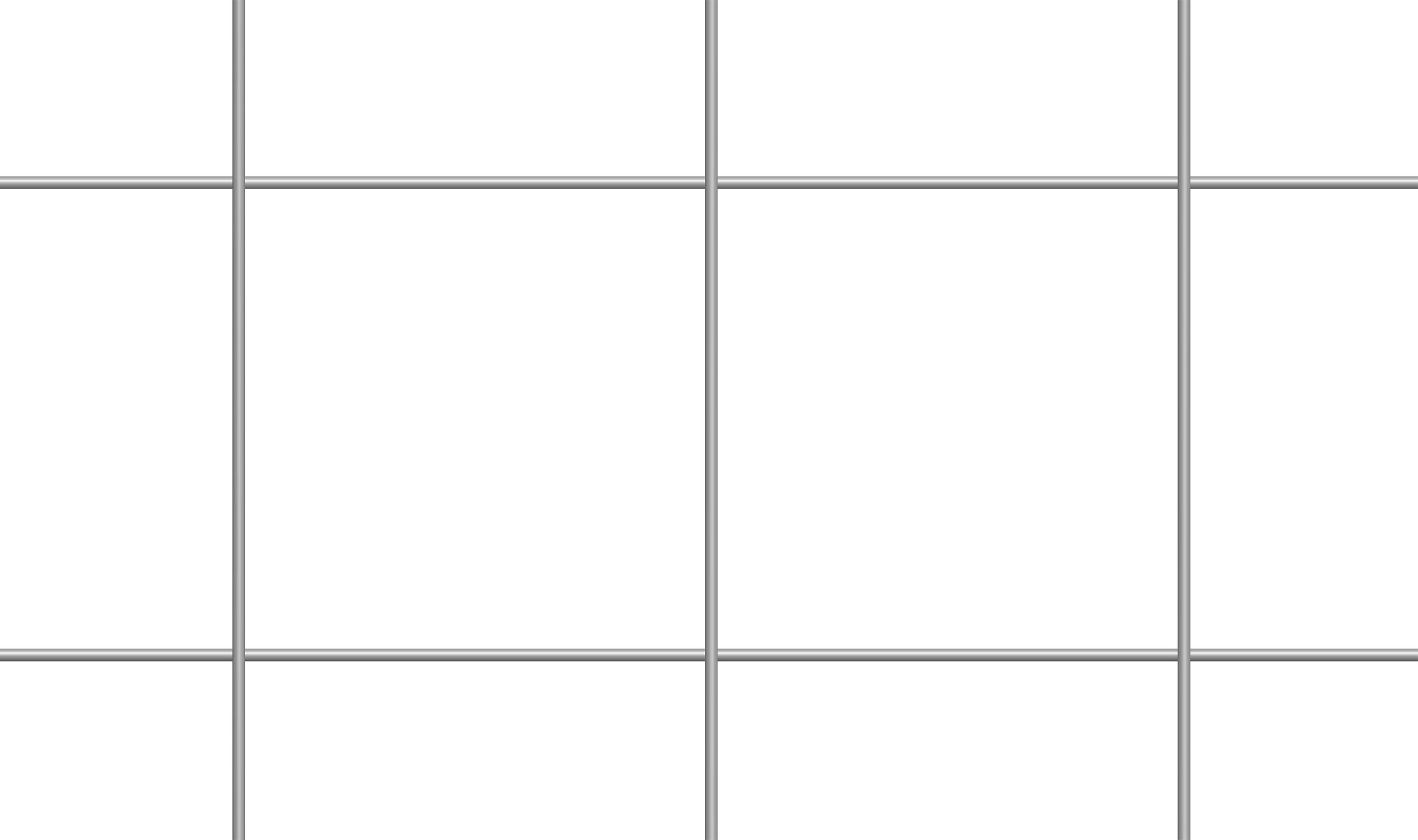

The Banker Wire WD-049 is a 4" MESH .105 WELDED wire mesh specification. This square mesh can be welded in a variety of alloys including: Stainless Steel, Plain Steel, Weathering Steel, Pre-Galvanized Steel, Galfan.

Pattern Details

Percent Open:94.8%

Overall Thickness:0.210

Crimp Style: WDWD

Aspect Ratio: 1.00:1

Opening Limitation: 0.390

Weight: 0.18 lbs./sq. ft.

Available Raw Materials:
stainless materialplain-steel materialweathering-steel materialpre-galv materialgalfan material

Click here for more information on Raw Materials Available Secondary Finishes:
PlatedPowder Coat

Click here for more information on Secondary Finishes
Welded Wire Mesh about image
What can Banker Wire welded wire mesh do for you?Learn More
WD-049 ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. WD-203 – Welded Wire MeshWD-203

A small hamburger icon, navigation for interior page vertical movement. Top of Page Pattern Details Related Projects Related Press Related Products
Chat Icon close icon contact us icon

How can we help?

General Inquiry Quote Request Sample Request

Give us a call!

+1 262-363-6120

We use cookies to improve your experience on our website. By closing this banner or interacting with our site, you acknowledge and agree to this.

WD-049

banker wire logo for our print page

print ready image for WD-049 img b height marker img a height marker

Pattern Details

Percent Open:94.8%

Aspect Ratio:1.00:1

Weight:0.18 lbs./sq. ft.

Overall Thickness:0.210

Crimp Style:WDWD

Opening Limitation:0.390 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A
Max. B
Raw Material Configuration

240
78
printable material iconprintable material iconprintable material iconprintable material iconprintable material icon


Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
