TXZ-3



TXZ-3

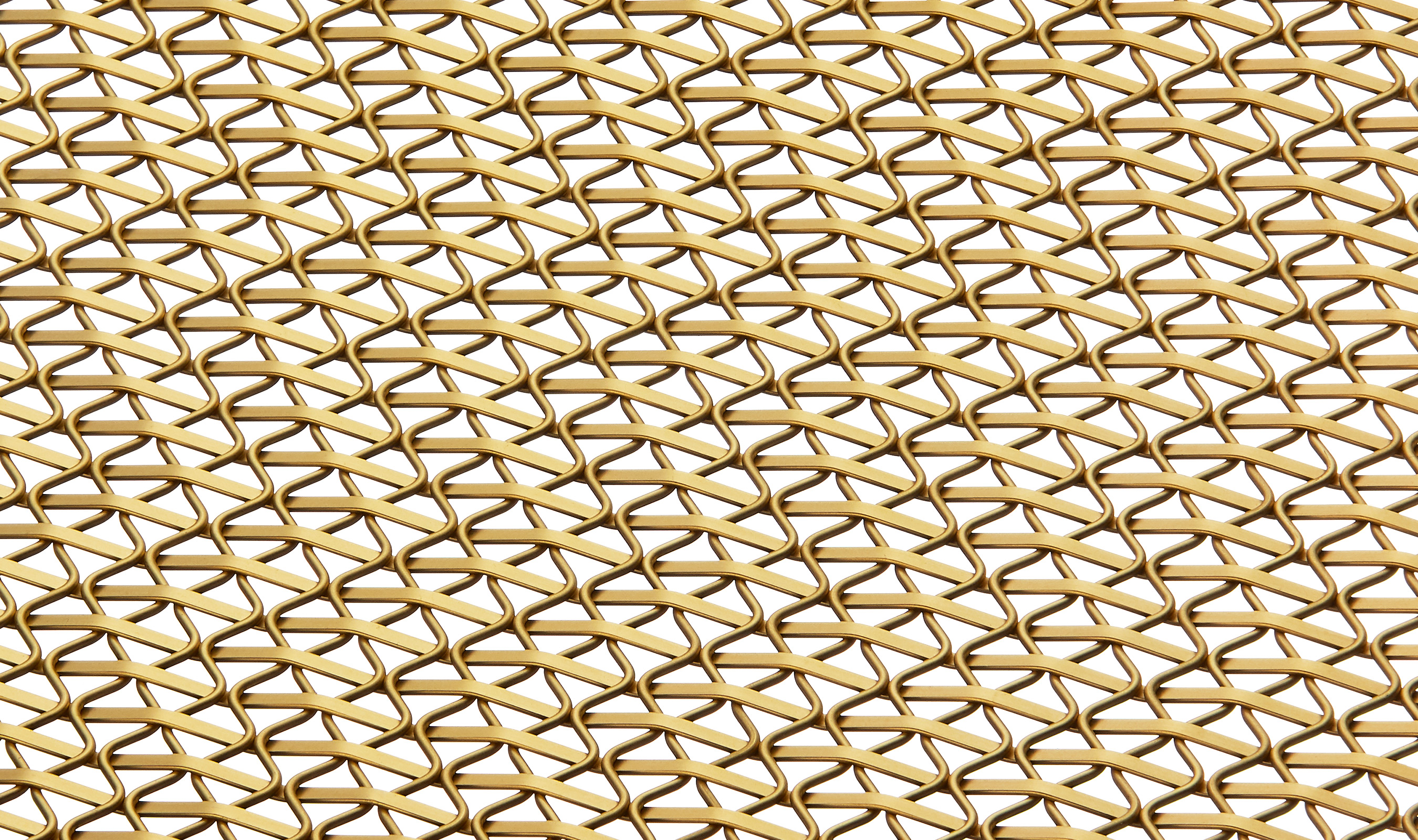

Mid-Fill Woven Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. TXZ-003TXZ-3
Transparency Model Specification Sheet

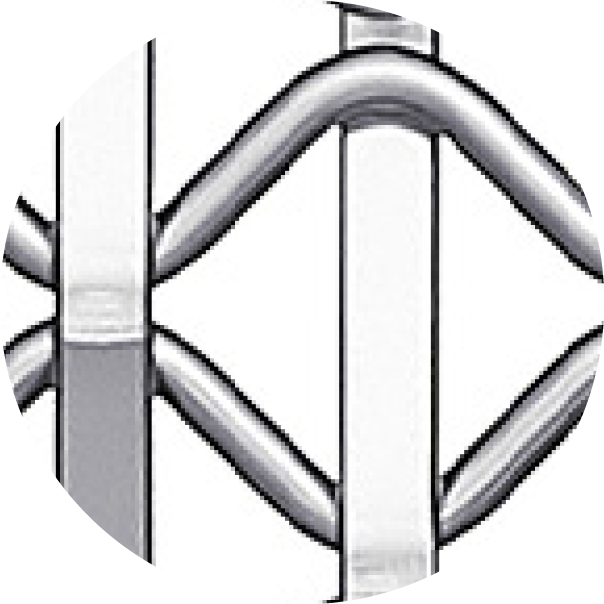

Banker Wire TXZ-3 wire mesh pattern utilizes a 4 heddle loom to create a zigzag arrangement of both flat and round crimped wires.

Pattern Details

Percent Open:48.24%

Overall Thickness:0.205

Crimp Style:2XTW2

Aspect Ratio:1.94:1

Opening Limitation:0.218

Weight:1.431 lbs./sq. ft.



Available Raw Materials: StainlessSteel_Icon2 PlainSteel_Icon2 Click here for more information on Raw Materials

Available Secondary Finishes

PVDPlatedPowder Coat

Click here for more information on Secondary Finishes

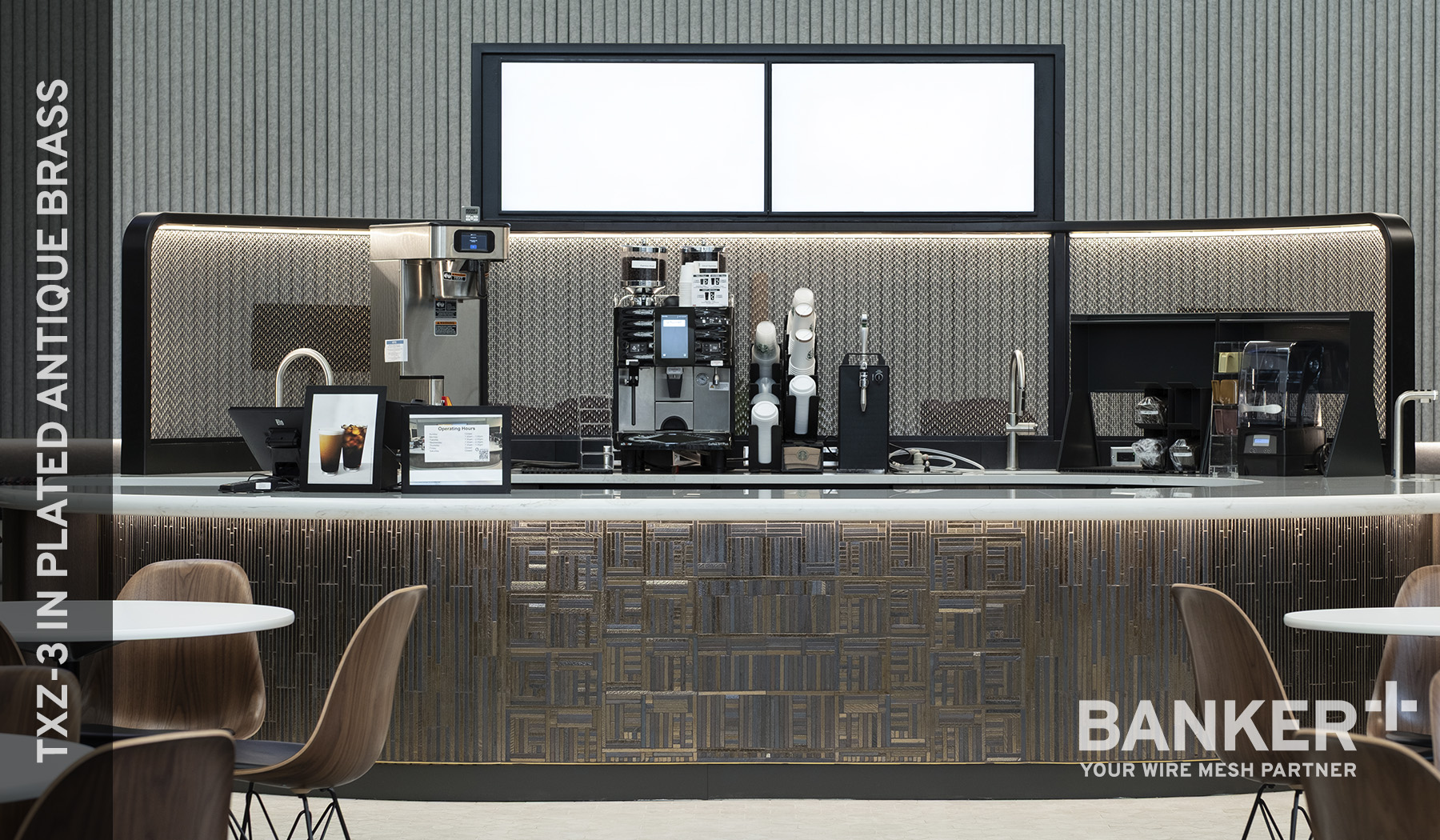

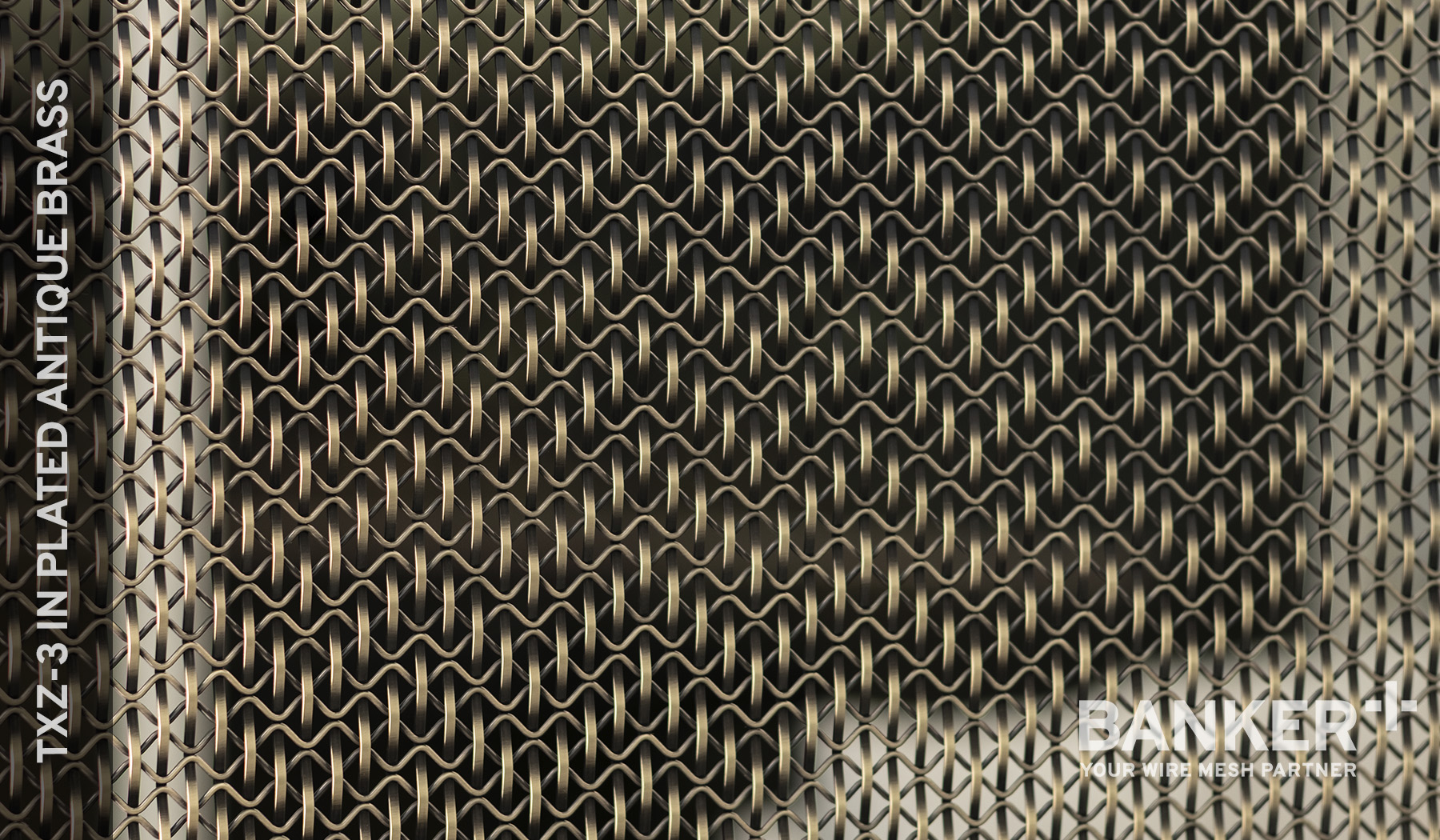

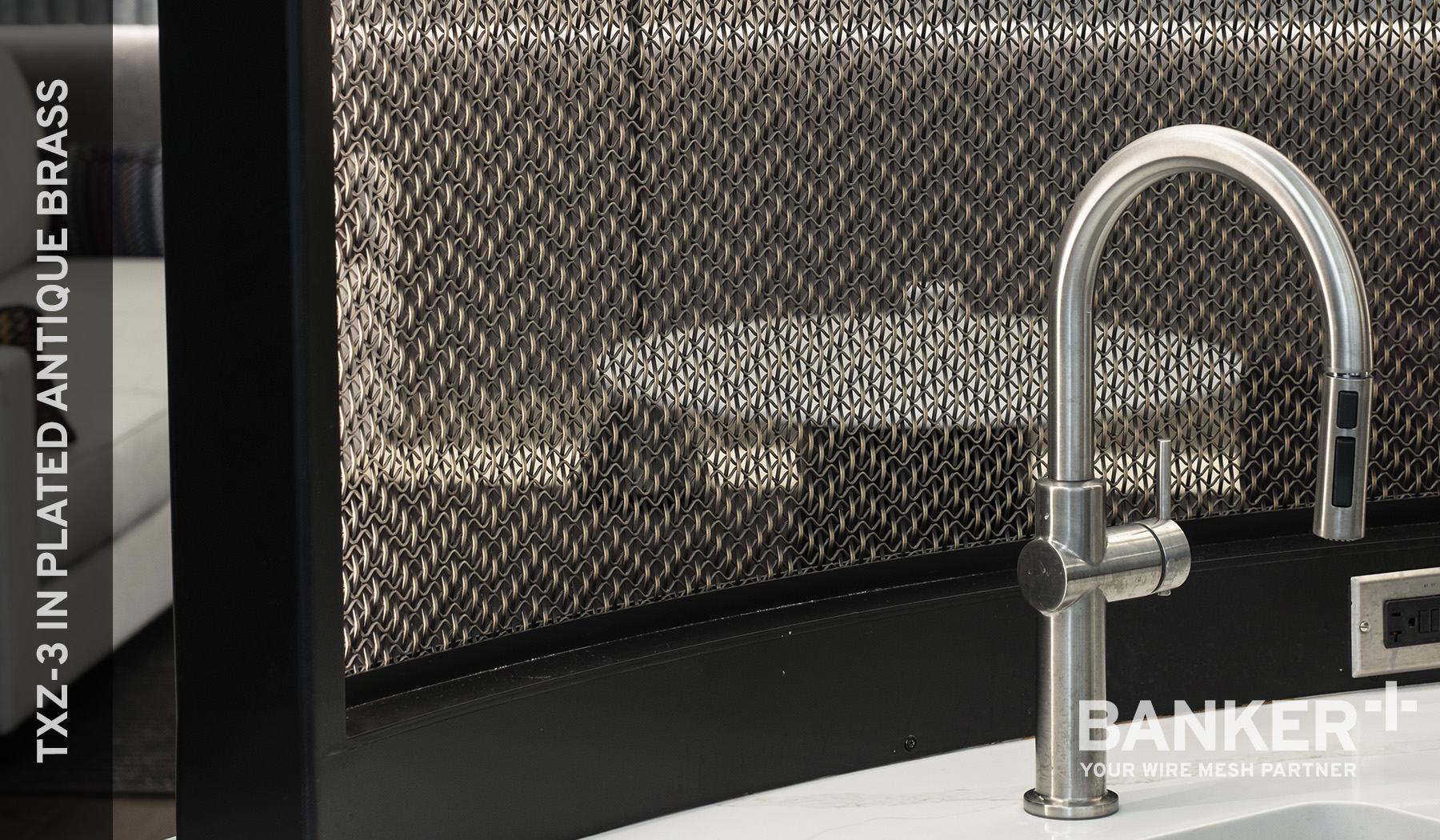

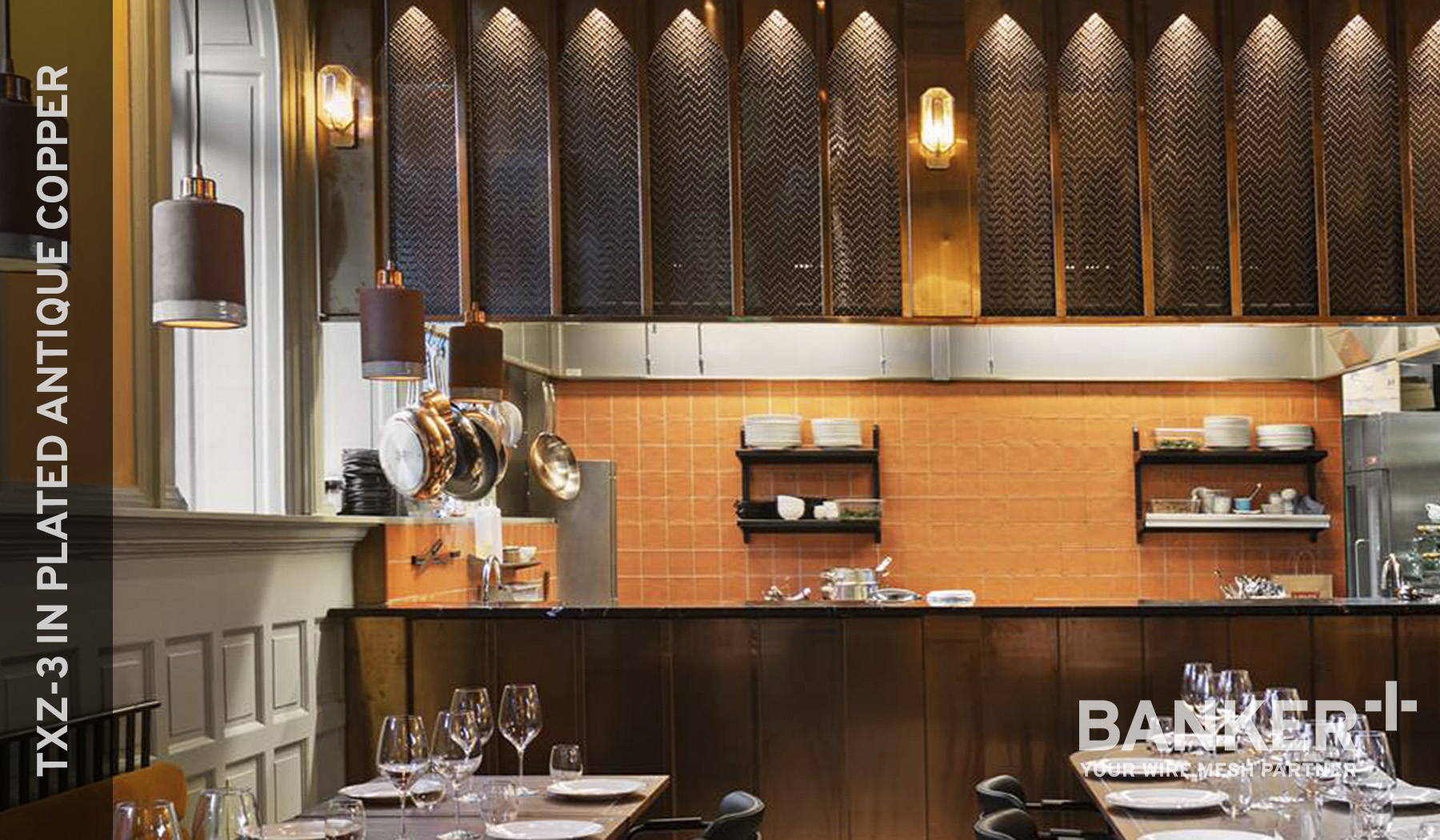

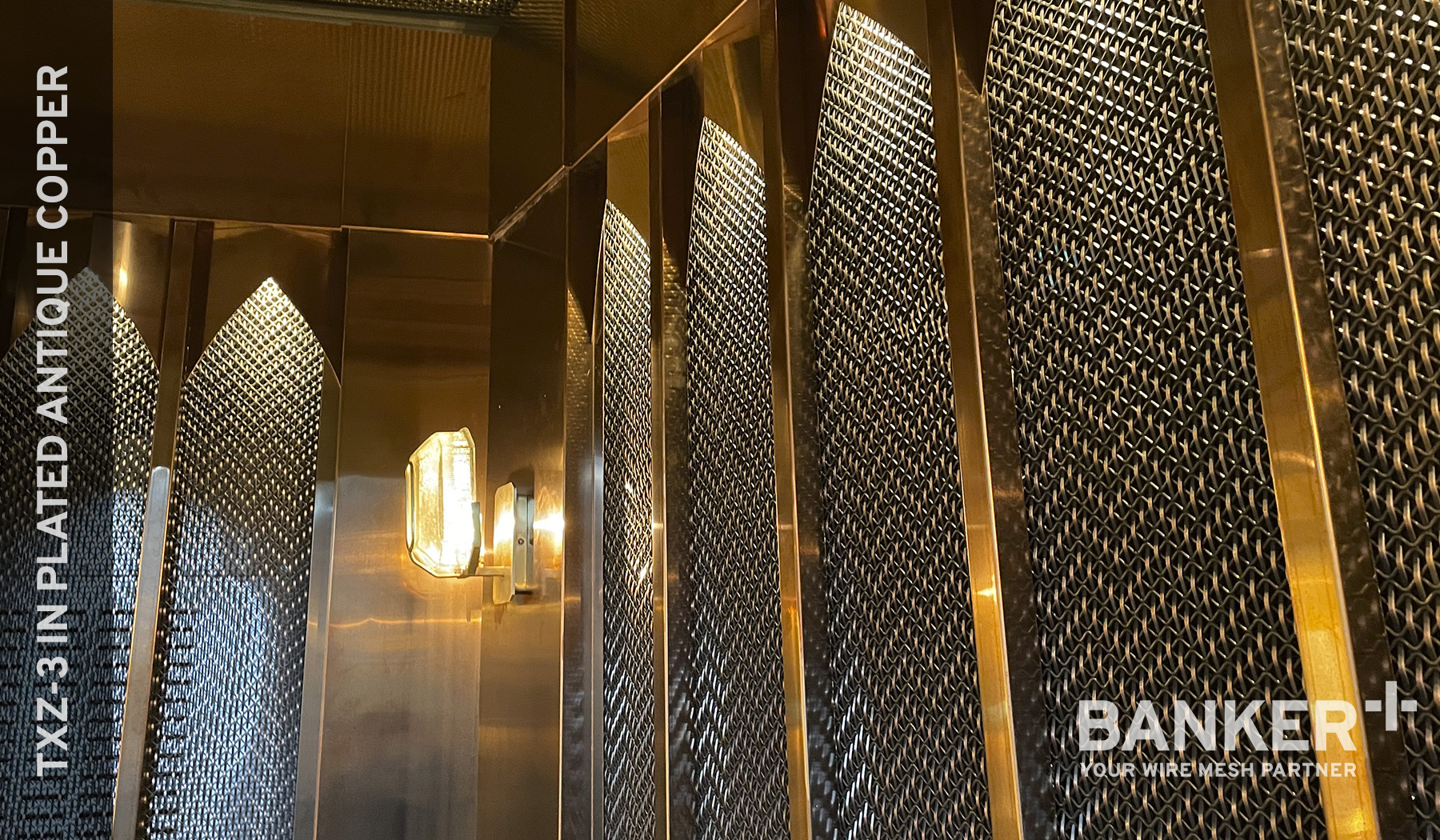

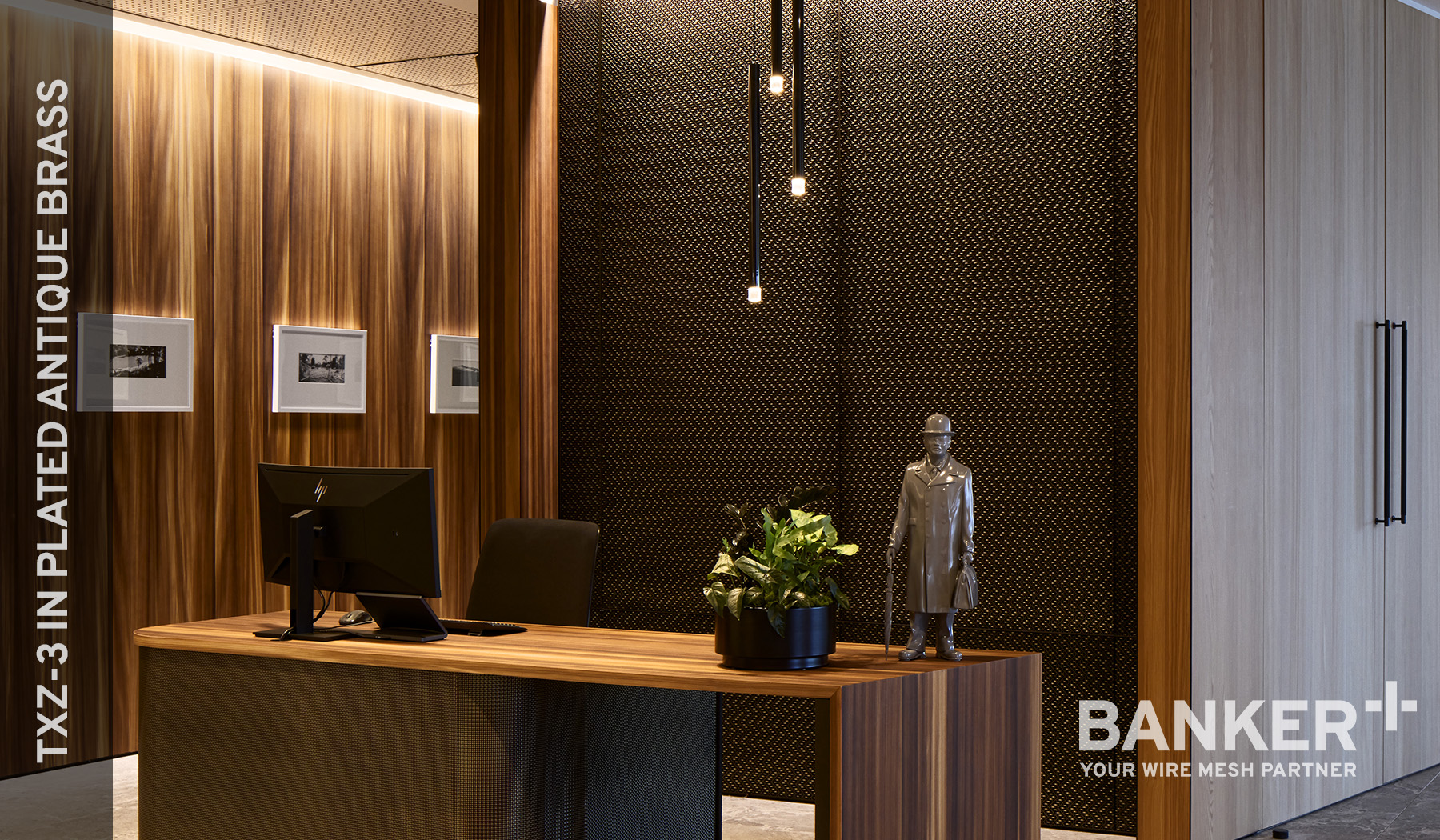

TXZ-3 Photos
