SPZ-52

SPZ-52

Fine Woven Wire Mesh Pattern

Transparency Model Specification Sheet Contact Us

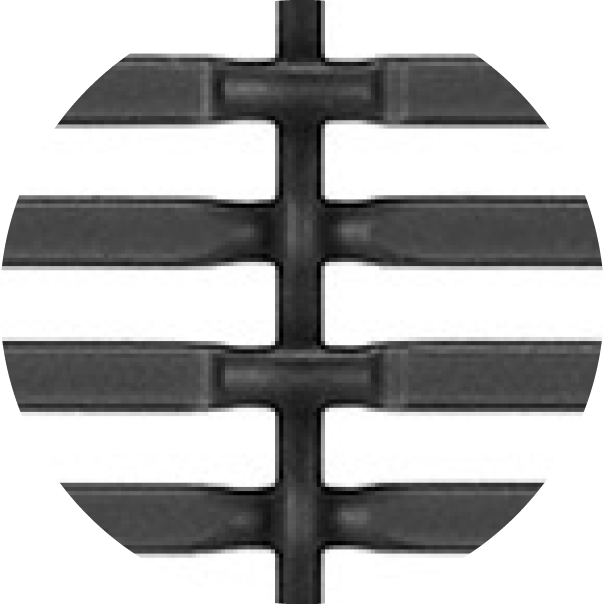

SPZ-52 is a unique fine scale rectangular woven wire mesh pattern that can be woven in a wide range of alloys.  Crushed warp wires and gently formed cross wires give this wire mesh a unique "Up-Close" design detail while providing a far away transparent metallic skin appearance.

Pattern Details

Percent Open:47.2%

Overall Thickness:0.143

Crimp Style: ELPLZ

Aspect Ratio:4.13:1

Opening Limitation:0.072

Weight:1.49 lbs./sq. ft.

Available Raw Materials: Click here for more information on Raw Materials


Available Secondary Finishes

PlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes
photo-icon Stainless Steel (A) / Brass (B) photo-icon Stainless Steel (A) / Bronze (B) photo-icon Brass (A) / Stainless Steel (B) photo-icon Bronze (A) / Stainless Steel (B) photo-icon Copper (A) / Stainless Steel (B) photo-iconStainless Steel photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconBrass photo-iconGeneral photo-iconBronze photo-iconGeneral photo-iconCopper photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconPlated - Antique Brass photo-iconGeneral photo-iconPlated - Antique Copper photo-iconGeneral photo-iconPlated - Antique Nickel photo-iconGeneral photo-iconPlated - Black Copper photo-iconGeneral photo-iconPlated - Bright Copper photo-iconGeneral photo-iconPlated - Bright Brass photo-iconGeneral photo-iconPlated - Dark Oxide photo-iconGeneral photo-iconPlated - Satin Brass photo-iconGeneral photo-iconPlated - Bright Chrome photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral photo-iconGeneral
stainless testing bronze testing brass testing plated-brass testing copper testing plated-copper testing plated-black-copper testing plated-satin-brass testing plated-dark-oxide testing plated-nickle testing plated-bright-brass testing plated-bright-chrome testing plated-bright-copper testing ss-brass testing ss-bronze testing brass-ss testing bronze-ss testing copper-ss testing stainless plain-steel weathering-steel pre-galv galfan brass bronze copper aluminum ss-brass ss-bronze ss-copper brass-ss ss-brass-ss ss-brass-ss-brass bronze-ss ss-bronze-ss ss-bronze-ss-bronze copper-ss ss-copper-ss ss-copper-ss-copper ss-ss-brass ss-ss-bronze ss-ss-copper ss-brass-brass ss-bronze-bronze ss-copper-copper brass-ss-ss bronze-ss-ss copper-ss-ss ss-b-brass-brass ss-b-bronze-bronze ss-b-copper-copper pvd-champagne-gold pvd-gunmetal pvd-multi pvd-rose-gold pvd-royal-gold pvd-chocolate-gold plated-brass plated-copper plated-nickle plated-black-copper plated-bright-copper plated-bright-brass plated-dark-oxide plated-satin-brass plated-bright-chrome powder-black powder-black-oil powder-black-raven powder-multi us10a us10b

Stainless Steel


a small ruler that is set in inches
All Finishes Raw Materials Secondary Finishes

❮
❯


Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.



SPZ-52

banker wire logo for our print page

print ready image for SPZ-52 img b height marker img a height marker

Pattern Details

Percent Open:47.2%

Aspect Ratio:4.13:1

Weight:1.49 lbs./sq. ft.

Overall Thickness:0.143 in.

Crimp Style:ELPLZ

Opening Limitation:0.072 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A
Max. B
Raw Material Configuration

168
72

168
60


Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
