S-46



S-46

Fine Architectural Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. S-046S-46
Specification Sheet

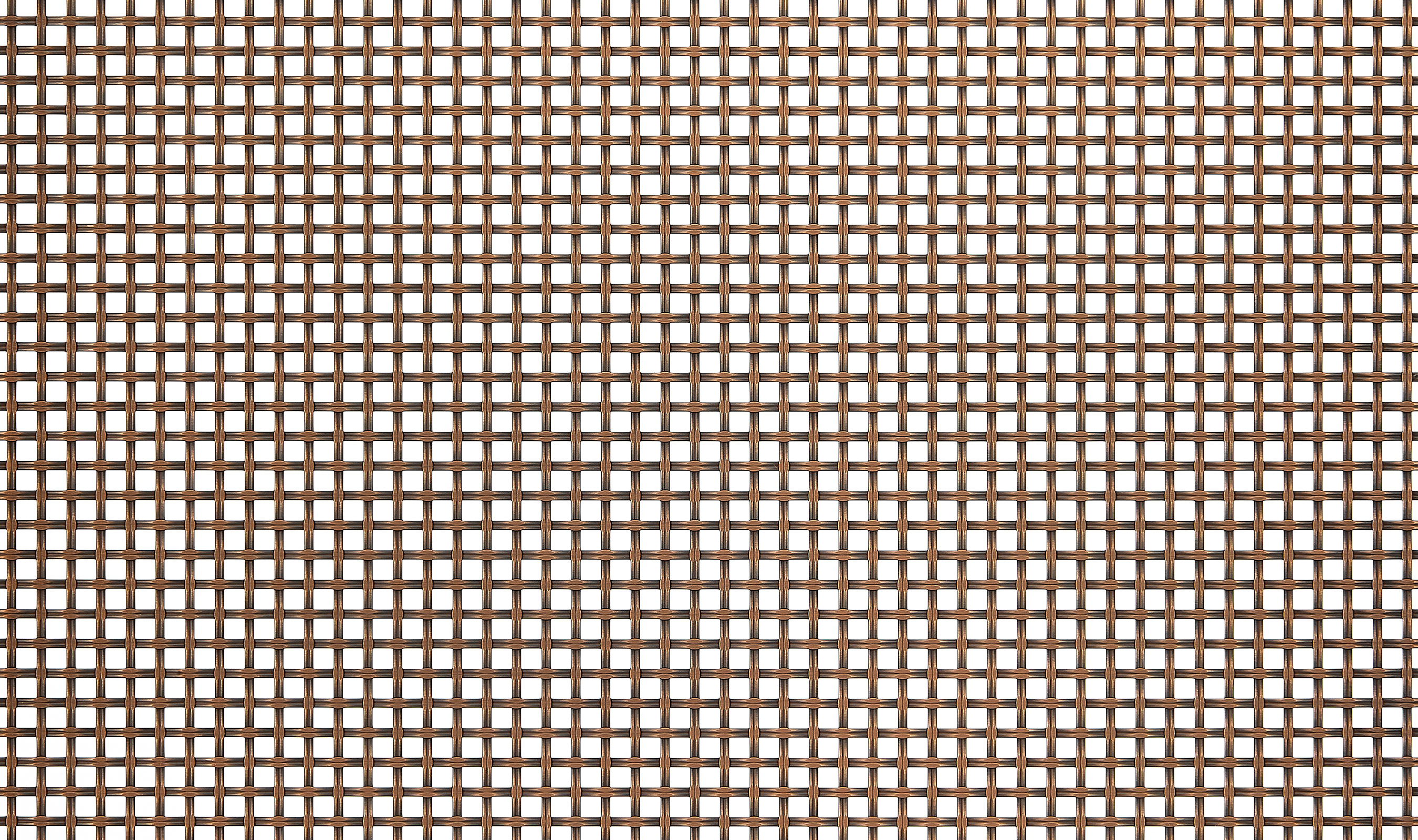

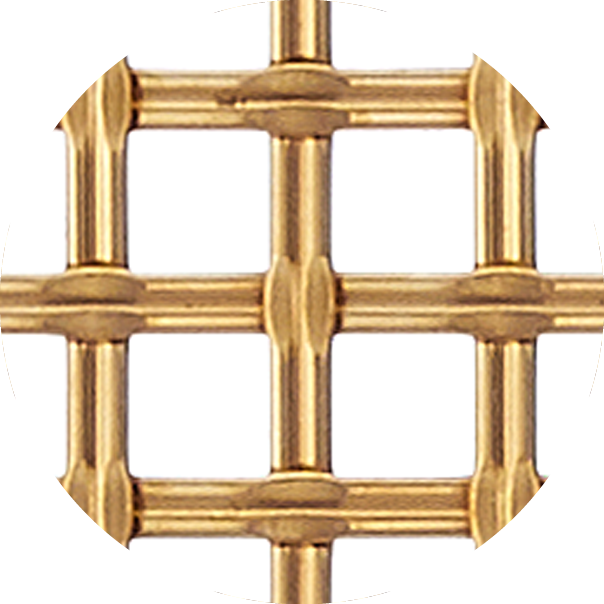

S-46 is a fine scale flat wire mesh that appears to be woven with two parallel wires. Slightly faceted at the wire mesh intersections, this mesh pattern displays a unique soft woven texture.

Pattern Details

Percent Open:44.3%

Overall Thickness:0.082

Crimp Style:E1E1

Aspect Ratio:1.00:1

Opening Limitation:0.163

Weight:1.18 lbs./sq. ft.



Available Raw Materials: Brass_Icon2 Bronze_Icon2 Copper_Icon2 PlainSteel_Icon2 StainlessSteel_Icon2 Click here for more information on Raw Materials

Available Secondary Finishes

PVDPlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes



S-46 Photos
