P-97 Copper and Stainless steel mixed metal meshP-97 decorative wire mesh bar designP-97 stainless steel wire mesh pattern


Fine Woven Wire Mesh Pattern

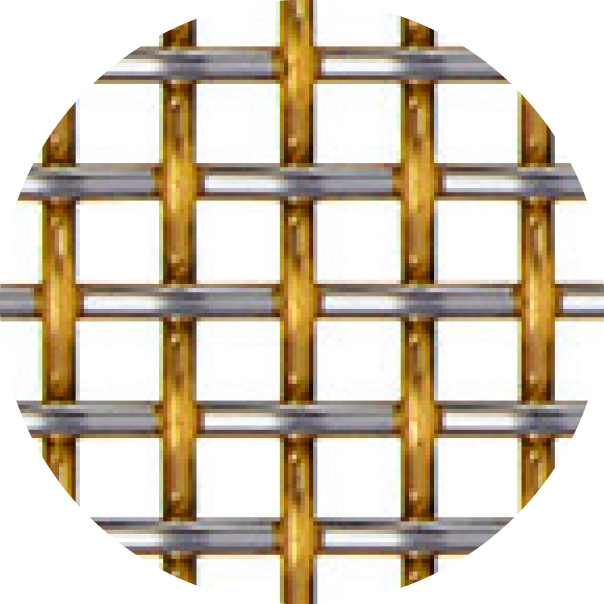

P-97 is a small scale plain crimp architectural wire mesh pattern. This material reflects highlights from all directions with a smooth, cool wash of light.  A plain crimp wire mesh is characterized by a smooth "Untouched" flowing wire woven in a gentle over/under repeat. There are hundreds of other plain crimp patterns available at Banker Wire. Call us to explore your options. When specifying a copper, bronze, or brass P-97 wire mesh pattern, it is required that a stainless steel warp wire be used in conjunction with the copper based fill wire alloy.  The stainless steel wire as the warp wire creates a more architectural quality wire mesh pattern.  Blending two alloys within a single wire mesh pattern creates a subtle color mix that is very unique.  The caramel, yellow, or red color of the bronze, brass, and copper wires reflect off of the smooth shiny stainless wire.  This enhances the presentation with changing intensity depending on the viewers angle.

Pattern Details

Percent Open:45.0%

Overall Thickness:0.094

Crimp Style: PLPL

Aspect Ratio: 1.00:1

Opening Limitation: 0.096

Weight: 1.04 lbs./sq. ft.

Available Raw Materials:
stainless materialplain-steel materialss-brass materialss-bronze materialss-copper material
Click here for more information on Raw MaterialsCopper, Brass and Bronze are Living Finishes. Learn moreliving finishAvailable Secondary Finishes:
PlatedPowder CoatUS10A
Click here for more information on Secondary Finishes
