M22-43

Mid-Fill Woven Wire Mesh Pattern

Transparency Model Specification Sheet

M22-43 is a mid scale, heavy duty architectural wire mesh pattern where 2 individual wires share the same crimp pocket. A flared out diamond shaped facet at the intersections creates the unique detail. A very robust weave, this mesh pattern can be used for just about any application.

Pattern Details

Percent Open:46.3%

Overall Thickness:0.150

Crimp Style: 2E2E

Aspect Ratio: 1.00:1

Opening Limitation: 0.350

Weight: 2.07 lbs./sq. ft.

Available Raw Materials:

Click here for more information on Raw Materials Copper, Brass and Bronze are Living Finishes. Learn more Available Secondary Finishes:

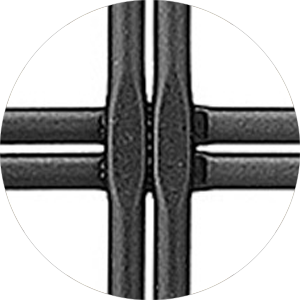

Plated Powder Coat US10A US10B

Click here for more information on Secondary Finishes

Configured Stainless Steel (A) / Brass (B) Finish Overview

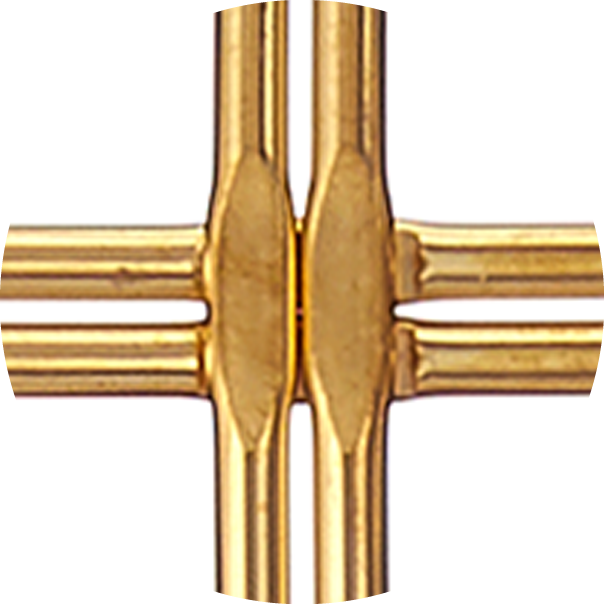

Configured Stainless Steel (A) / Bronze (B) Finish Overview

Plated – Champagne Bronze Finish Overview

Configured Stainless Steel (A) / Brass (B)

Configured Stainless Steel (A) / Bronze (B)

Stainless Steel

All Finishes Raw Materials Secondary Finishes

❮

❯

Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.

A small hamburger icon, navigation for interior page vertical movement.

Top of Page Pattern Details

Custom wire mesh and additional specifications available.

Inquire now or call us at 262-363-6120

M22-43

Pattern Details

Percent Open:46.3%

Aspect Ratio:1.00:1

Weight:2.07 lbs./sq. ft.

Overall Thickness:0.150

Crimp Style:2E2E

Opening Limitation:0.350 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections

Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A

Max. B

Raw Material Configuration

168

Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
