M12Z-17



M12Z-17

Mid-Fill Woven Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. M12Z-017 – Architectural Woven Wire MeshM12Z-17
Transparency Model Specification Sheet

Simple and elegant, this twin wire rigid cable weave looks good in any application.  Well balanced and strong, the M12Z-17 wire mesh pattern works well as railing infill panels, facades, along with many other interior design elements.  Robust on the loom, this mesh can be woven in all wire alloys as well as mixed alloy configurations.

Pattern Details

Percent Open:61.7%

Overall Thickness:0.402

Crimp Style:PS2PZ

Aspect Ratio:2.67:1

Opening Limitation:0.430

Weight:2.12 lbs./sq. ft.



Available Raw Materials: Click here for more information on Raw Materials

Available Secondary Finishes

PVDPlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes



M12Z-17 Photos



Projects Related To M12Z-17

Lewisville High SchoolView Details Stade de Soccer de MontréalView Details

Press Related to M12Z-17

Banker Wire Mesh Outfits State-of-the-Art Indoor Soccer Stadium in Montréal

MUKWONAGO, WI—NOVEMBER 15, 2016— Built in the center of one of Montréal’s most diverse neighborhoods, the Stade de ...Read More


Banker Wire Precision Weaves Infill Panels for Texas High School

MUKWONAGO, WI—MARCH 26, 2013—Lewisville School District’s oldest – but newly renovated – school now features Ban...Read More




Products Similar to M12Z-17

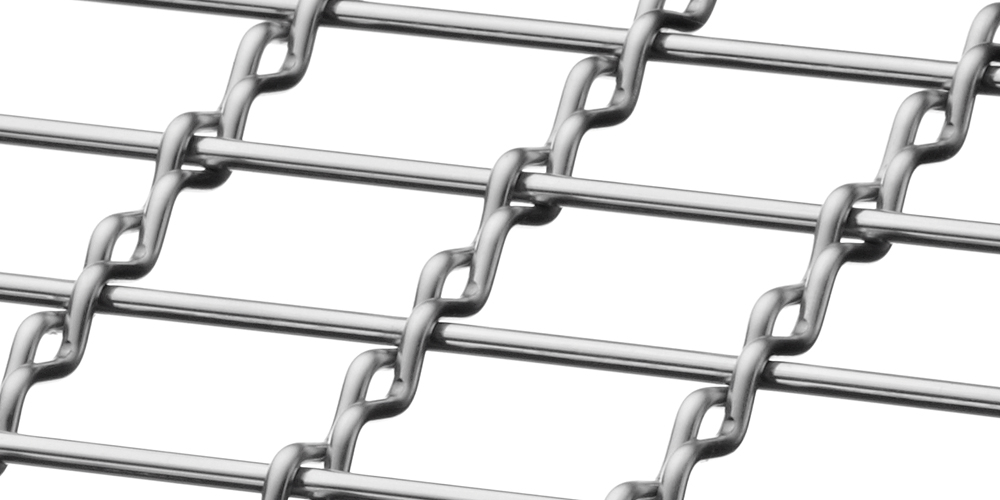

M12Z-34View Details M14Z-3View Details M13Z-145View Details

We use cookies to improve your experience on our website. By closing this banner or interacting with our site, you acknowledge and agree to this.

M12Z-17

banker wire logo for our print page

print ready image for M12Z-17 img b height marker img a height marker

Pattern Details

Percent Open:61.7%

Aspect Ratio:2.67:1

Weight:2.12 lbs./sq. ft.

Overall Thickness:0.402 in.

Crimp Style:PS2PZ

Opening Limitation:0.430 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A
Max. B
Raw Material Configuration

240
96
WeatheringSteel_Icon2 StainlessSteel_Icon2 PlainSteel_Icon2 Bronze_Icon2 Brass_Icon2

168
72
PreGalv_Icon2 Galfan_Icon2 Copper_Icon2 Aluminum_Icon2 Stainless-Copper_Icon2 Stainless-Bronze_Icon2 Stainless-Brass_Icon2


Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
