I-136

Woven Wire Mesh Pattern

Specification Sheet Contact Us

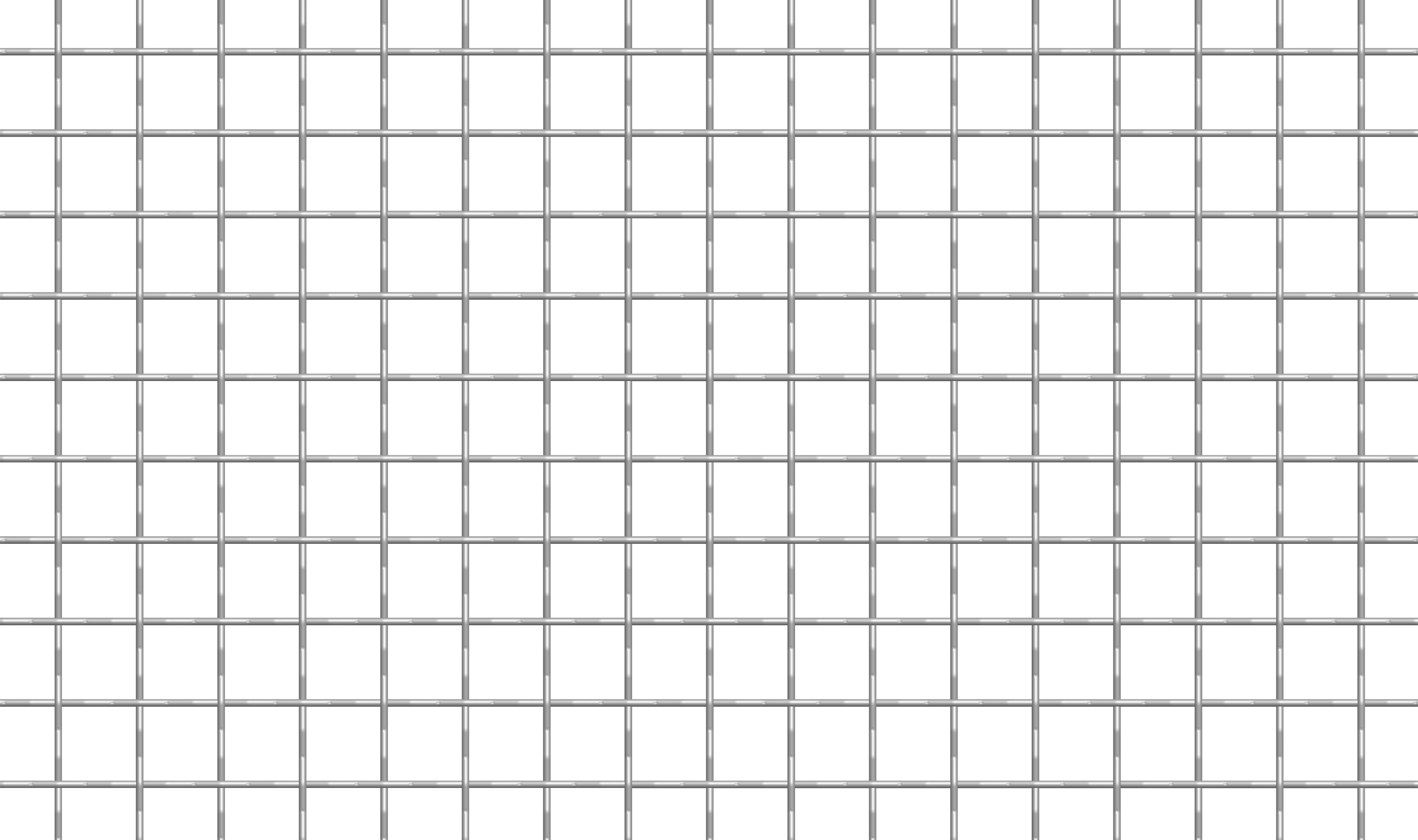

The Banker Wire I-136 is a 5/8" OPG .063 woven wire mesh specification. This square weave can be woven in a variety of alloys including: Stainless Steel, Plain Steel, Aluminum, Bronze, Brass, Copper.

Pattern Details

Percent Open:82.5%

Overall Thickness:0.126

Crimp Style: I3I3

Aspect Ratio: 1.00:1

Opening Limitation: 0.625

Weight: 0.39 lbs./sq. ft.

Available Raw Materials:

Click here for more information on Raw Materials Copper, Brass and Bronze are Living Finishes. Learn more Available Secondary Finishes:

Plated Powder Coat US10A US10B

Click here for more information on Secondary Finishes

Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. WD-203 – Welded Wire MeshWD-203

A small hamburger icon, navigation for interior page vertical movement.

Top of Page Pattern Details

Custom wire mesh and additional specifications available.

Inquire now or call us at 262-363-6120

I-136

Pattern Details

Percent Open:82.5%

Aspect Ratio:1.00:1

Weight:0.39 lbs./sq. ft.

Overall Thickness:0.126

Crimp Style:I3I3

Opening Limitation:0.625 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections

Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A

Max. B

Raw Material Configuration

1200

Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.
