FPZ-31

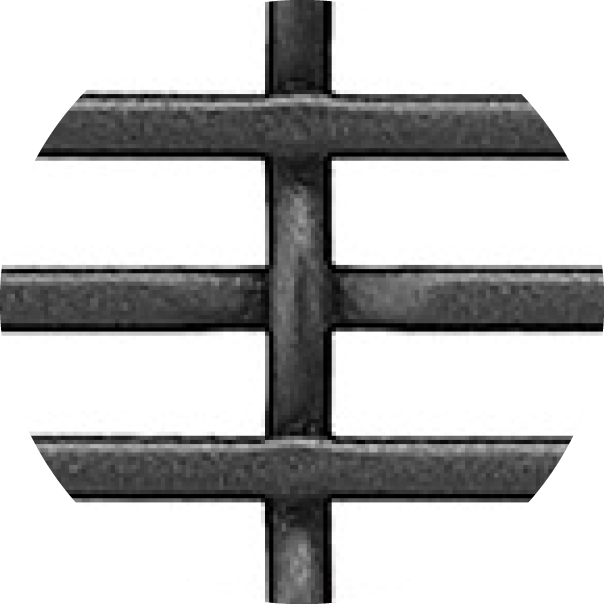

FPZ-31 woven wire mesh in stainless steel.FPZ-31 decorative mesh in Raven Black Powder Coat FinishFPZ-31 Stainless Steel woven wire mesh on the loomFPZ-31 Stainless Steel metal mesh

FPZ-31

Fine Woven Wire Mesh Pattern

The FPZ-31 architectural wire mesh pattern is a simple elongated flat top woven pattern.  The metal mesh can be configured in many different alloys as well as secondary finishes.

Pattern Details

Percent Open:56.1%

Overall Thickness:0.160

Crimp Style: FTPLZ

Aspect Ratio: 4.88:1

Opening Limitation: 0.130

Weight: 1.28 lbs./sq. ft.

Available Raw Materials:
stainless materialplain-steel materialpre-galv materialbrass materialbronze materialcopper materialaluminum materialss-brass materialss-bronze materialss-copper material

Click here for more information on Raw MaterialsCopper, Brass and Bronze are Living Finishes. Learn moreliving finishAvailable Secondary Finishes:
PlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes
