DS-23

Opaque Woven Wire Mesh Pattern

Specification Sheet Contact Us

The DS-23 opaque architectural wire mesh pattern is a well balanced opaque style weave. The woven pattern mixes stainless steel wires with a single "Offset" brass or bronze wire. Often times used for wall panels and architectural cladding, the DS-23 mesh is a strong surface material that can handle a lot of abuse.

Pattern Details

Percent Open:0.0%

Overall Thickness:0.155

Crimp Style: PD5PZ

Aspect Ratio: 1.33:1

Opening Limitation: 0.000

Weight: 2.79 lbs./sq. ft.

Available Raw Materials:

Click here for more information on Raw Materials Copper, Brass and Bronze are Living Finishes. Learn more Available Secondary Finishes:

US10A

Click here for more information on Secondary Finishes

Configured Stainless Steel (A) / Brass (B) Finish Overview

Configured Stainless Steel (A) / Bronze (B) Finish Overview

Configured Stainless Steel (B) / Brass (A)(B)

Stainless Steel

All Finishes Raw Materials Secondary Finishes

❮

❯

Important Note Regarding Color
Please note that due to the limitations and relative inconsistencies of digital displays, the original and artificially colorized photography above is intended to only be a representation of the raw materials Banker Wire uses and is not a substitution for physical samples. Banker Wire manufactures all wire mesh in a bare mill finished condition. Please always confirm size, color, and finishes of wire mesh patterns with physical samples.

A small hamburger icon, navigation for interior page vertical movement.

Top of Page Pattern Details

Custom wire mesh and additional specifications available.

Inquire now or call us at 262-363-6120

DS-23

Stainless with bronze or brass in shown configuration only. For more information, please contact us.

Pattern Details

Percent Open:0.0%

Aspect Ratio:1.33:1

Weight:2.79 lbs./sq. ft.

Overall Thickness:0.155

Crimp Style:PD5PZ

Opening Limitation:0.000 in.

What are your dimensions?

We manufacture every job to size. List the dimensions and any addition details of your job. special notes sections

Please double check that your sizes and materials are within our Maximum Dimensions below.

"Maximum" Dimensions of available raw material configurations

Max. A

Max. B

Raw Material Configuration

120

Notes

*Weight based on the specific density of mild (plain) steel **Maximum sphere diameter which will pass through opening Product specifications are subject to change. Product image is shown at 100% unless stated otherwise. For accuracy, specification sheet must be printed with no scaling. Measurements and data are approximate and should be confirmed with a physical sample.

DS-23

DS-23

Opaque Woven Wire Mesh Pattern

Pattern Details

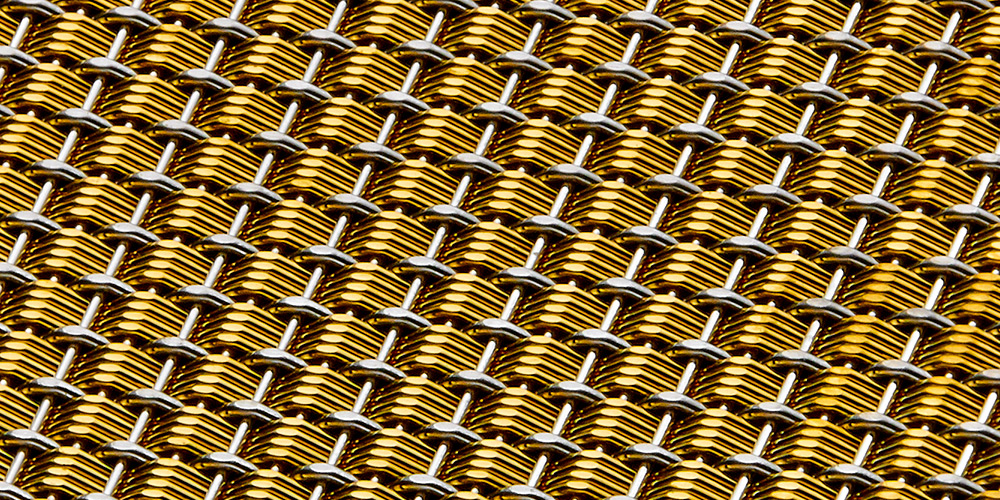

Products Similar to DS-23
