Randhurst Village Parking Garage

Products Used

Material:
  • 00 - Stainless Steel Wire Mesh
Application:
  • Façade, Panels
Building Type:
  • Parking Garage, Transportation

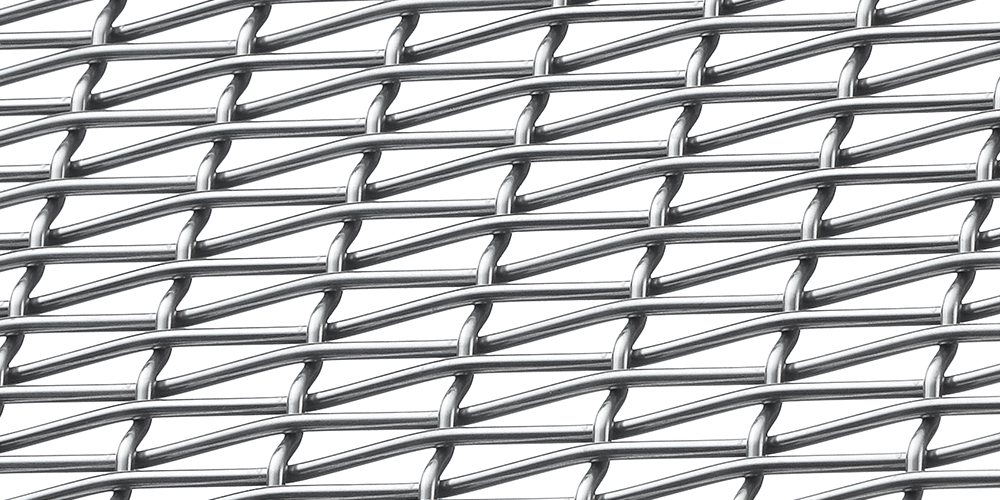

PZ-11 - Architectural Woven Wire Mesh Plain Crimp
Mount ProspectIllinoisUnited States
Project Details:

Randhurst Village Parking Garage

The original architectural specifications called for European cable and rod flexible mesh, a cable and rod combination requiring the multiple panels of various dimensions to be tensioned in order to be framed," said Ken Tardio, Meyer Metal Systems. "We have worked with Banker Wire in the past and have always been pleased with their efficiency," added Tardio. "They study the need at hand and come back quickly with an innovative solution that meets or exceeds the structural and aesthetic specifications at reduced costs for the project.

When a new three-story, 239,136 square foot parking deck was being built at Randhurst Village in Mount Prospect, Illinois, Meyer Metal Systems (specializing in architectural metals and powder-coated aluminum rails) turned to Banker Wire for an alternative solution to tensioned panels. European cable and rod flexible mesh were called for in the original architectural specifications, but this cable and rod combination required the multiple panels of various dimensions to be tensioned in order to be framed.

As a solution, Banker Wire came up with a weave that matched the European cable and rod flexible mesh specifications in spacing and diameter and created it as a “rigid” mesh. This mesh cost substantially less than the cable material, thus allowing Meyer to introduce a less expensive option while maintaining the architectural requirements of the project.

The architectural wire mesh used was the stainless steel PZ-11. PZ-11 offered a cost savings alternative to fill the openings of Randhurst Village, which is a village-style shopping mall. The rectangular plain crimped wire mesh was manufactured to size and were installed using a powder coated angle and bar pressure fit by bolts. Each opening of this shopping village's parking structure is covered with Banker Wire’s PZ-11 architectural wire mesh panelized by Meyer Metal Systems.

The project was completed in early 2011 as a 10-acre mixed-use center. The multi-level parking deck provides 586 parking spaces for shoppers and visitors. The exterior of the garage utilized a combination of precast concrete and architectural screen materials to blend seamlessly with the development.

Additional Images:
Banker Wire stainless steel PZ-11 architectural wire mesh was used as a cost savings alternative material to fill the openings of this village style shopping mall.
Banker Wire architectural mesh was manufactured to size for this structure.

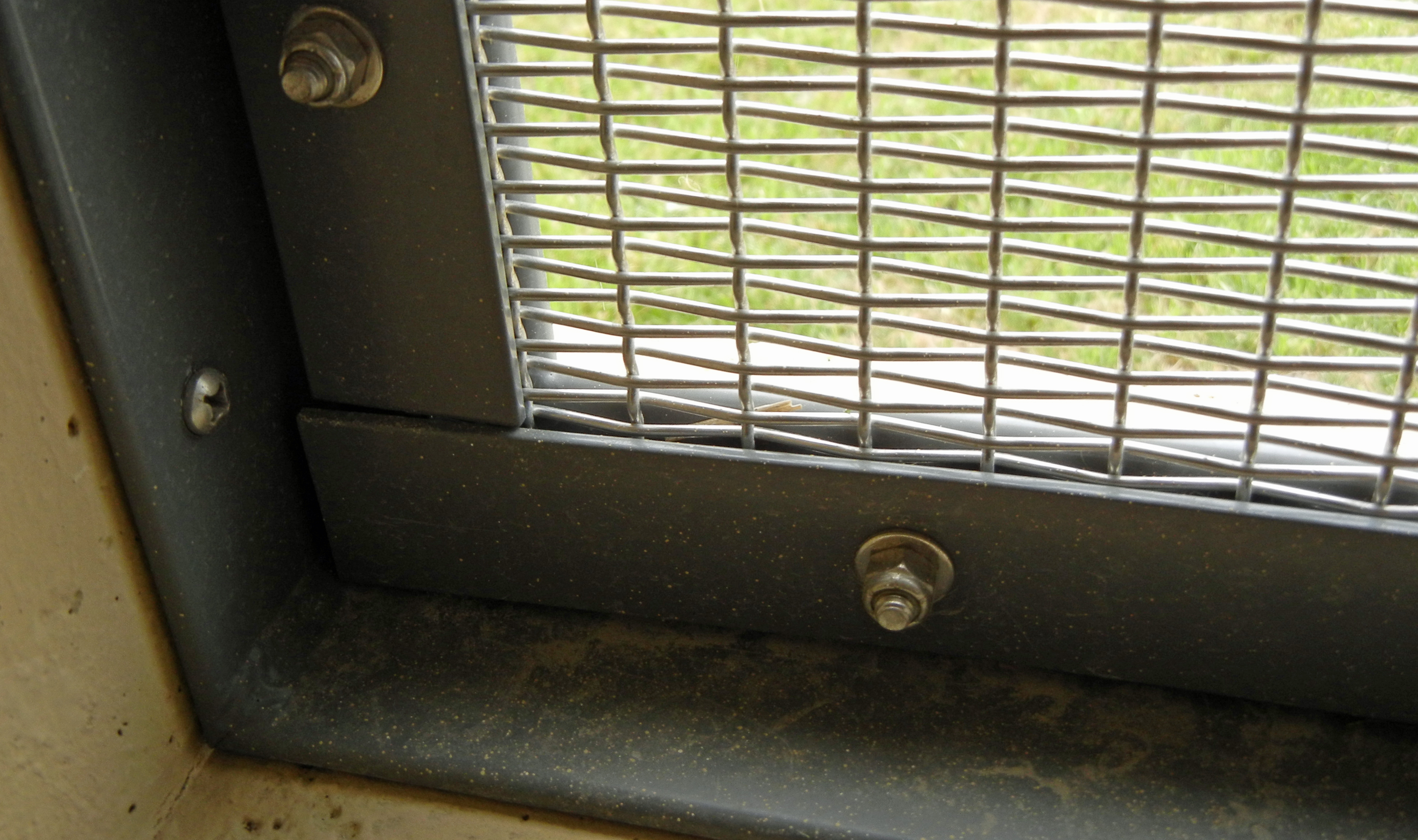

 The rectangular plain crimped wire mesh was manufactured to size and were installed using a powder coated angle and bar pressure fit by bolts.
 The rectangular plain crimped wire mesh was manufactured to size and were installed using a powder coated angle and bar pressure fit by bolts.
Each opening of this shopping village's parking structure is covered with architectural wire mesh panelized by Meyer Metal Systems.

Project Team

Project Designer:
David Galler
Project Fabricator:
Meyer Metal Systems
