LPZ-62



LPZ-62

Mid-Fill Woven Wire Mesh Pattern

gallery image ruler image
Notes: Product photography not to scale. Please download the woven wire spec sheet for more accurate size representation. Always confirm measurements with a physical sample. LPZ-062 – Architectural Woven Wire Mesh Lock Crimp/PlainLPZ-62
Transparency Model Specification Sheet

A strong an versatile woven wire mesh, the LPZ-62 lockcrimp/plain crimp combination caters to a wide variety of applications with it’s simple aesthetic.  Showing a 4:1 pattern ratio, this mesh can be customized in both spacing and diameter.

Pattern Details

Percent Open:45.80%

Overall Thickness:0.240

Crimp Style:LCPLZ

Aspect Ratio:4.00:1

Opening Limitation:0.130

Weight:2.400 lbs./sq. ft.



Available Raw Materials: StainlessSteel_Icon2 PlainSteel_Icon2 WeatheringSteel_Icon2 PreGalv_Icon2 Galfan_Icon2 Aluminum_Icon2 Bronze_Icon2 Brass_Icon2 Copper_Icon2 Click here for more information on Raw Materials

Available Secondary Finishes

PVDPlatedPowder CoatUS10AUS10B

Click here for more information on Secondary Finishes



LPZ-62 Photos

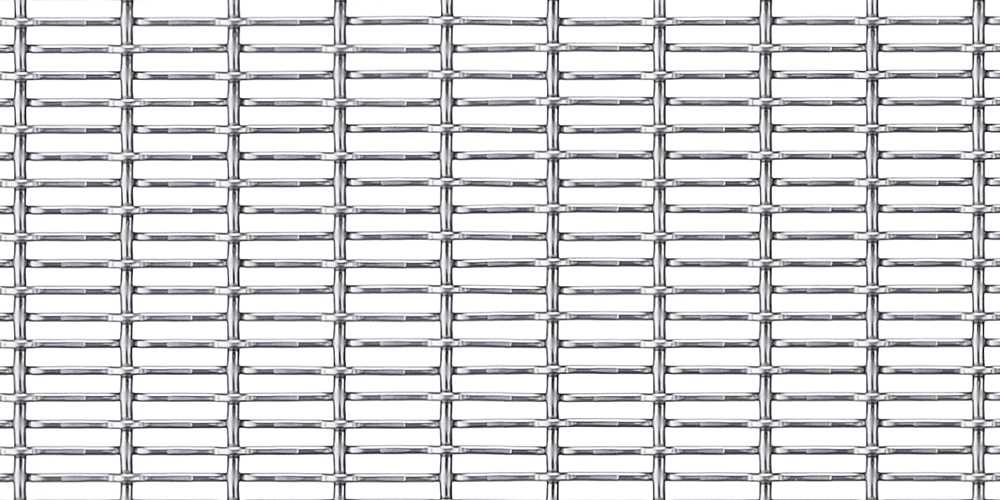

Projects Related To LPZ-62

Delta HotelView Details
